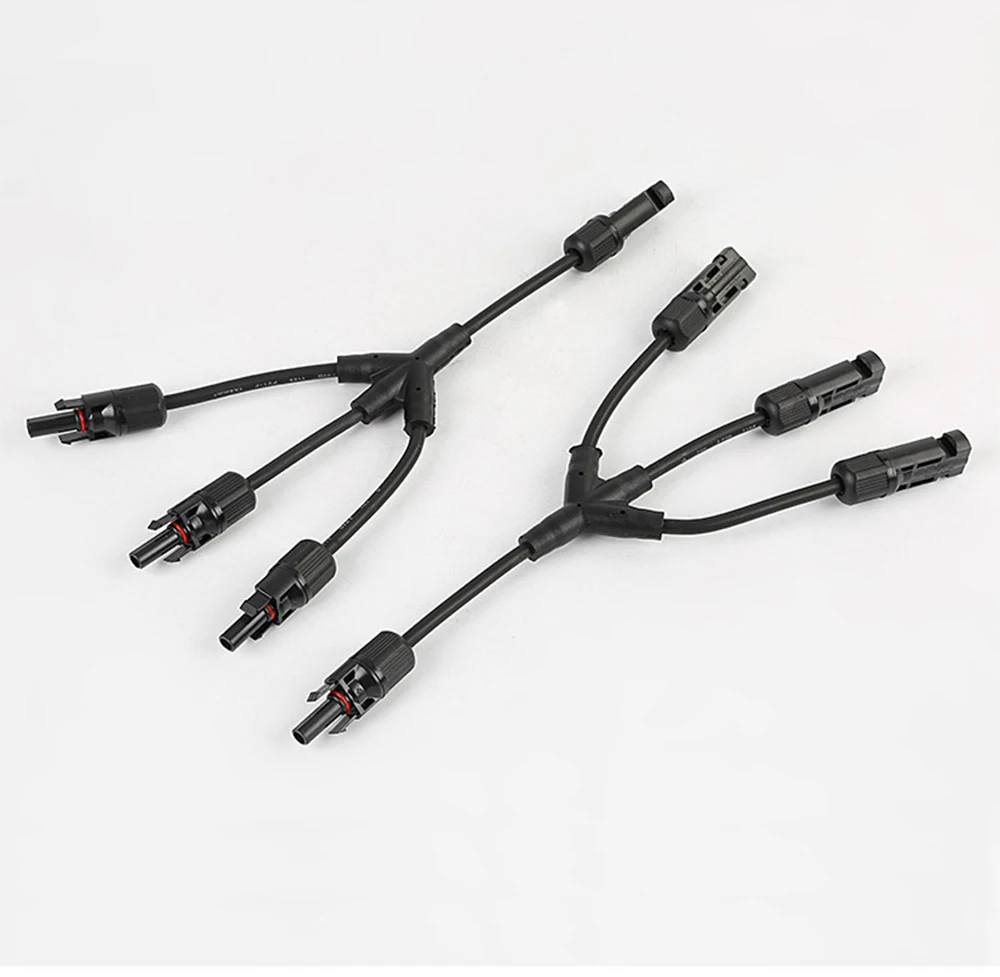

1 Pairs x Solar Connector Y T type 3 in 1 male and female
1 Pairs x Solar Connector Y T type 3 in 1 male and female
Description
Description
SPECIFICATIONS
Brand Name: Snaterm
Certification: CE
Choice: yes
Description: 2Y Female and male connector
Model Number: 3Y
Origin: Mainland China
semi_Choice: yes
Solar Panel 3T/3Y Branch Parallel Connection Adaptors 3 To 1 PV Connector for Solar Cable Connect PV / Photovoltaic System
Solar T Branch Parallel connector
Compatible Branch Conenctor
Insulation material |
PPO |
Rated Voltage |
TUV 1000 DC |
Rated Current |
20A-40A |
Test voltage |
6KV(50Hz,1Min) |
Contact material |
copper, tin plated |
Contact resistance |
less than 0.5 m ohm |
Degree of protection |
IP67 |
Pin dimension |
4.0 MM |
Compatible Solar cable |
2.5/4.0 /6.0 mm⊃2; (14/12/10 AWG) |

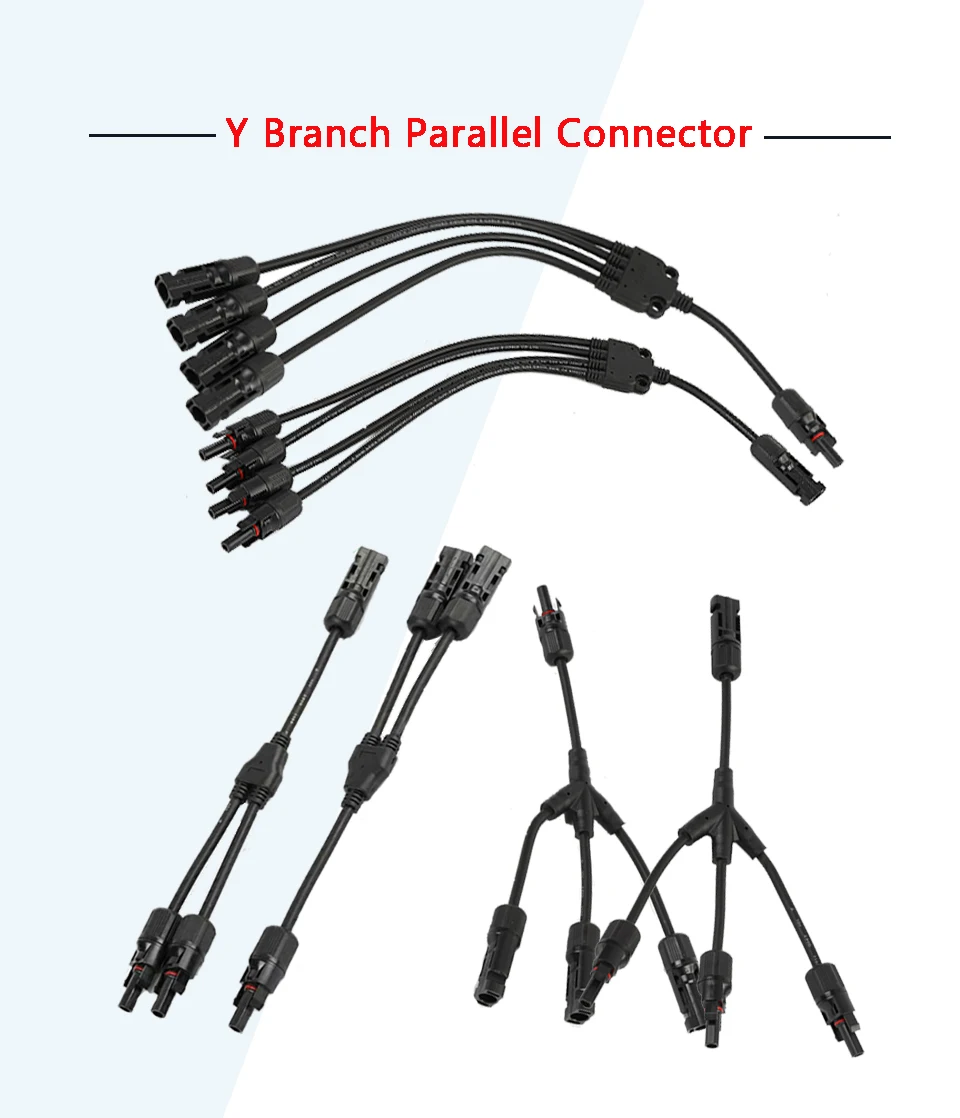

Solar Y Branch Parallel connector

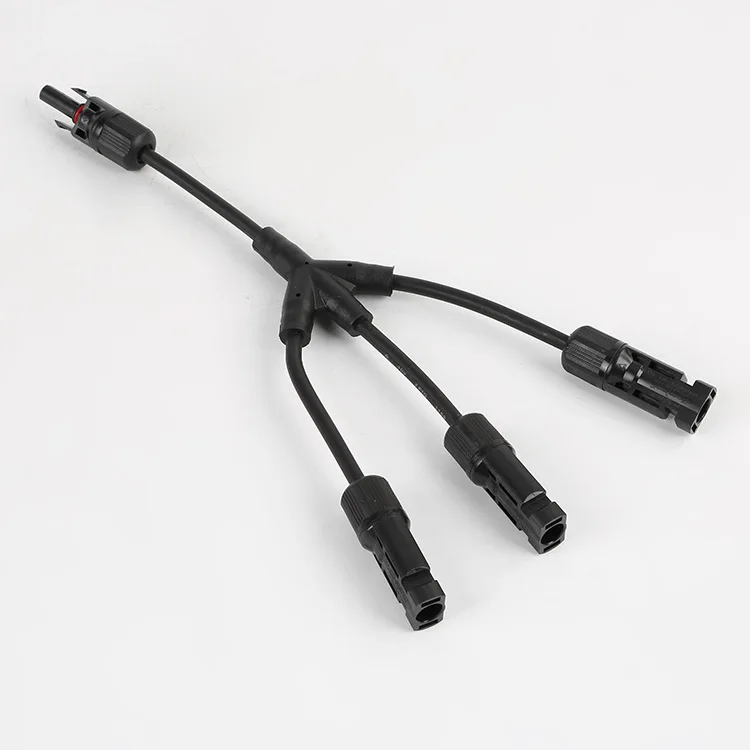

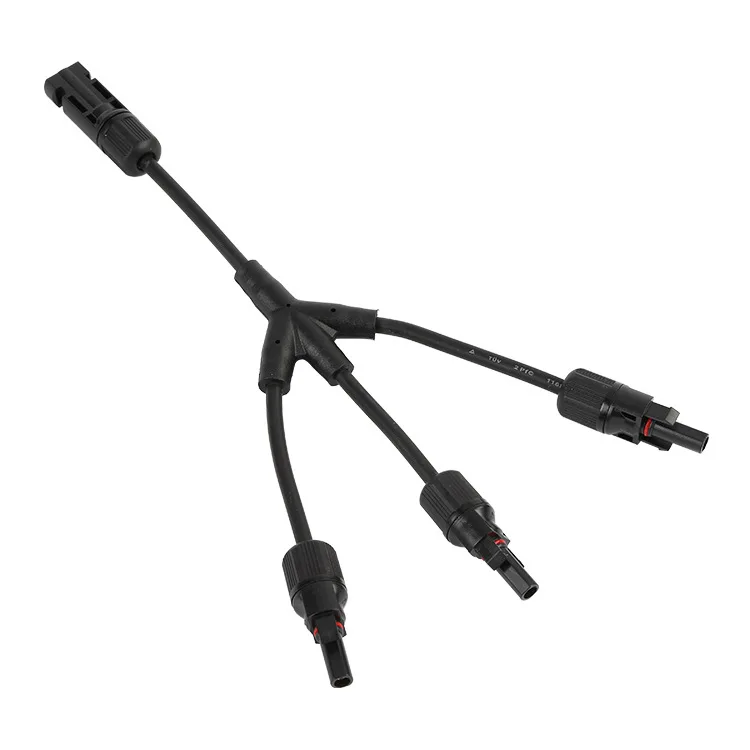

1 Pair of Y Type Solar Panel Cable Connectors:one female to double male (F/M/M) and one male to double female (M/F/F)
-It can be used in harsh environment
-Compatible with solar connectors

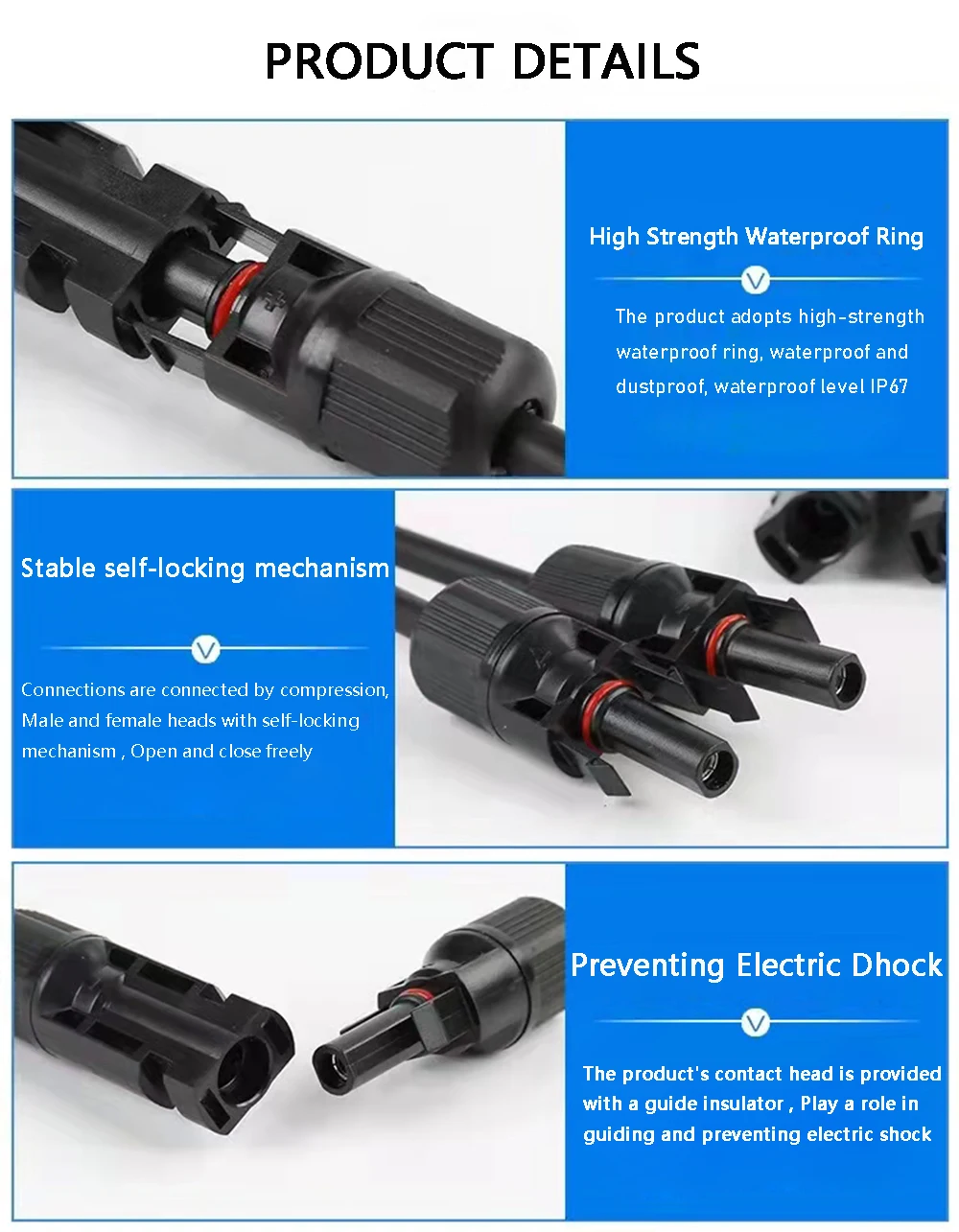

-Double seal rings for better waterproof effect
-Compatible with PV cables with different insulation diameters
-It can be used in harsh environment
-With excellent aging resistance and UV endurance
-Created seal, design of dust proof
-Load capability with big current and high voltage
-Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
-Strong pulling force capability
-Resistance of extra high & low temperature and fireproof
-Lower contact resistance
Specification:
-Cable specification: 4mm2(AWG12)
-Rated Current: 30A
-Rated voltage: 1000VDC
-Contact resistance: ≤0.2mmΩ
-Waterproof degree:IP67
-Flame class: UL94-VO
-Safety Class: 2
-Withdrawal force: ≥50N
-Insertion force: ≤50N
-Insulation material: PPO + PA
-Connecting system: crimping connection

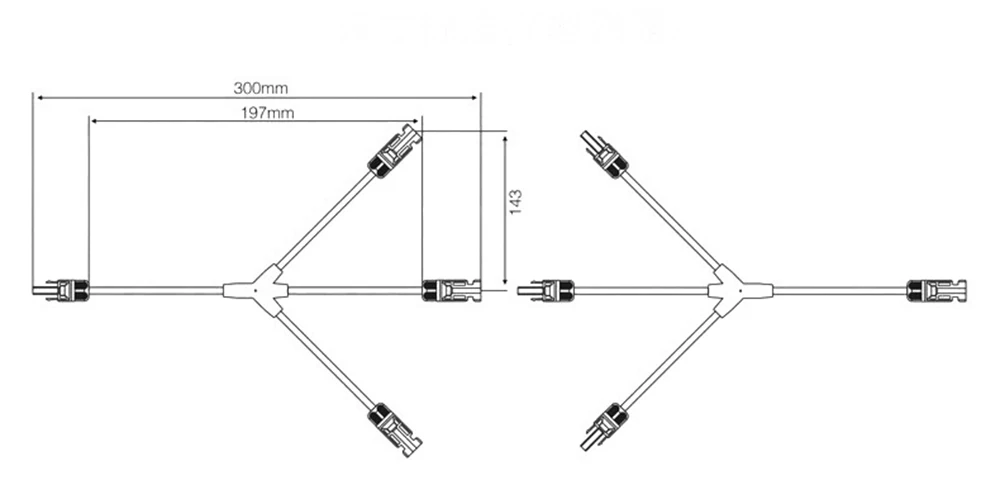

-Cable length: 31cm
Package includes:
-1 Pair of Y Type Solar Panel cable Connectors(one Male & one female)
