32CH 5MP DVR security AHD Camera System
32CH 5MP DVR security AHD Camera System
Description
Description

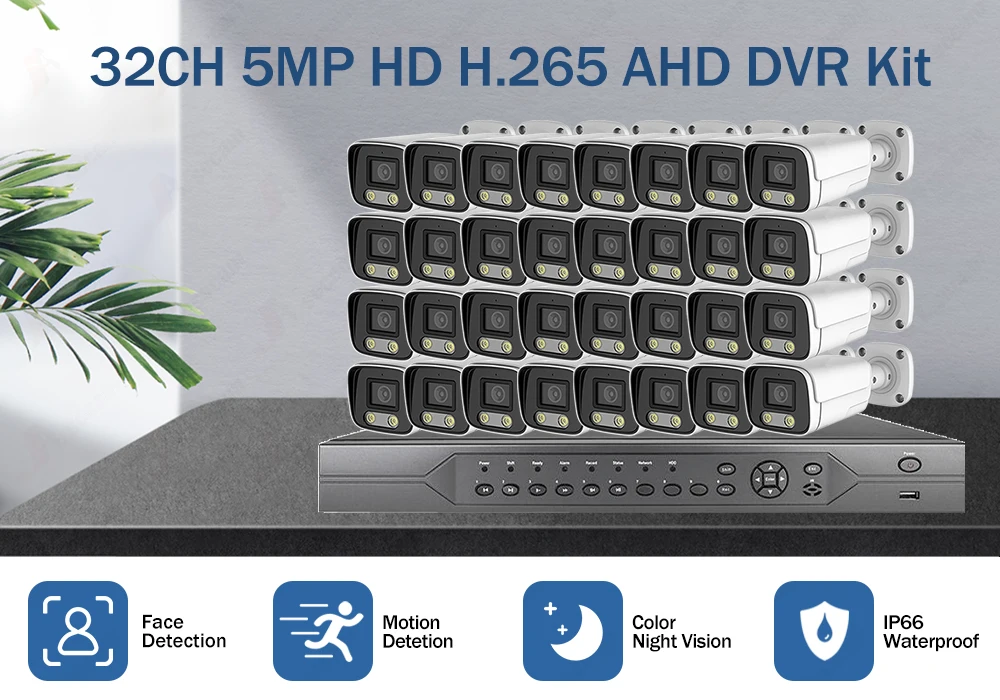

Overscam HD H.265+ 32CH 5MP DVR security AHD Camera System 5MP Waterproof Color Nigh Vision CCTV Video Surveillance Camera kit
Main Features:
1.5MP Ultra HD Video,Advanced H.265 Video Compression;
2.HD 5MP AHD Camera& 6 in 1 Hybrid Digital Video Recorder;
3.Support AI Human Detection& Face Human Playback;
4.All Cameras Support Full Color Day Night Vision;
5.All cameras adopts heavy-duty metal housing,IP66 Weatherproof Outdoor;
6.Ultra HD Day & Night Vision,Plug and Play,Easy to Setup;
7.Support Android,iphone,ipad,pc,vms view;
8.Support Motion Detection, Email Alerts, Video Playback,and Multi-Language;
9. Remote View Anywhere Anytime;

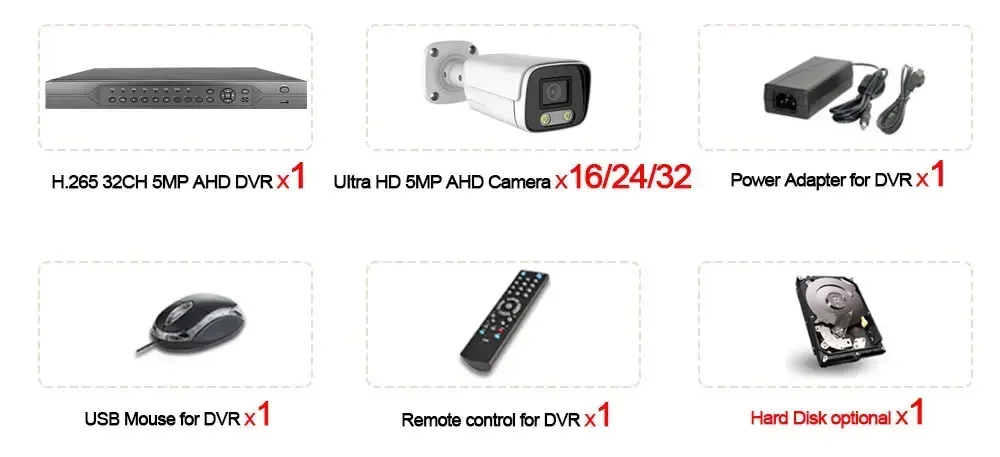

Packing List:
1 X 32CH H.265 AHD 5MP DVR NVR HVR 6 in 1 Digital Video Recorder;
16 /24/32X HD 5.0MP indoor outdoor IR Full Color Night vision weatherproof cameras;
1 X power adapter for DVR;
1 X USB Mouse for DVR;
1 X Remote Control for DVR;
Hard Disk optional !!!!
Video cable not included !!
Face Detection & Face Playback
Face Detection and Face playback and Face Record;Quickly capture face images and quickly play back face videos;Face Detection:automatically capture face images;Intelligent Face Playback: Intelligent Face video playback, saving time, not missing every details.
5MP High Quality Video
High-Definition interface output,Suport for online playback,Mobile remote,Multi-window display with 5.0MP Resolution.The angle will be more larger,and the image will be more clearer.

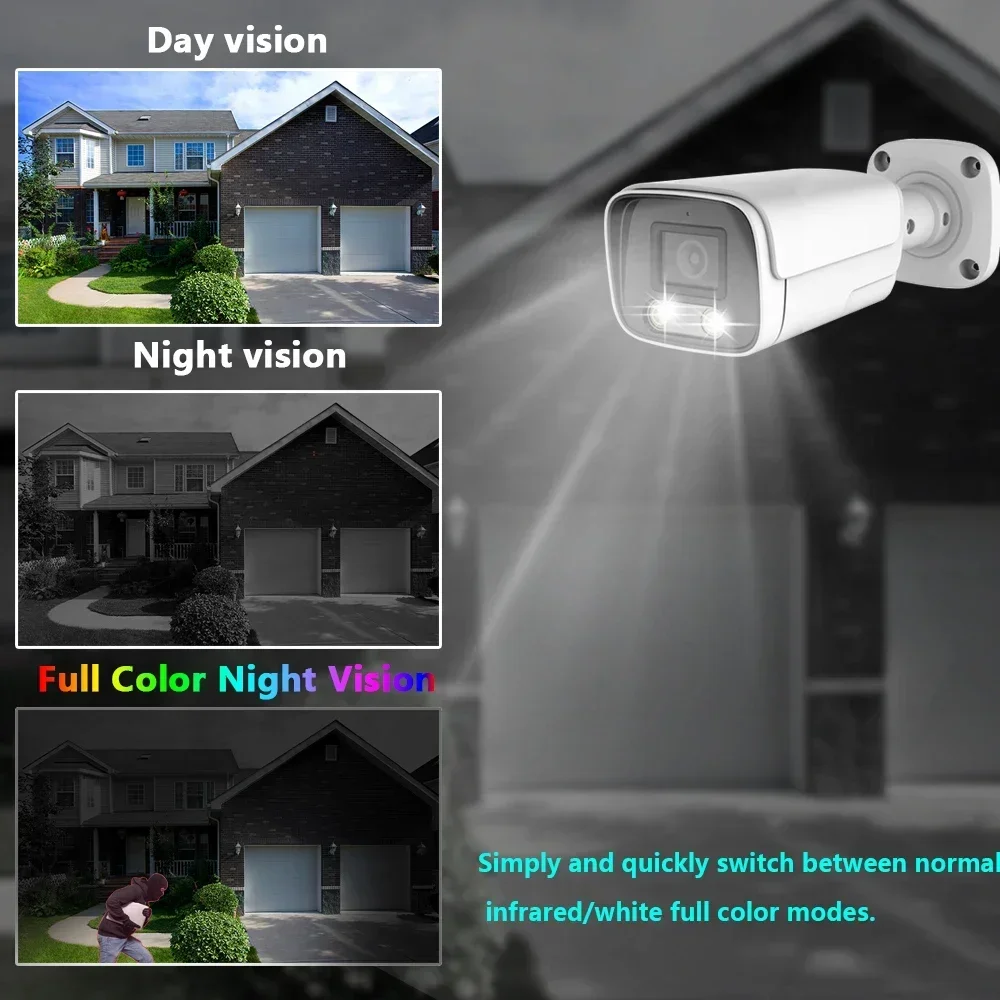

Ultra HD Full Color Day Night Vision
The smart IR-Cut filter switches automatically between day and night toreduce color cast in day time and enhance image brightness
at night making sureyou can get vivid surveillance footage from dawn to dark.

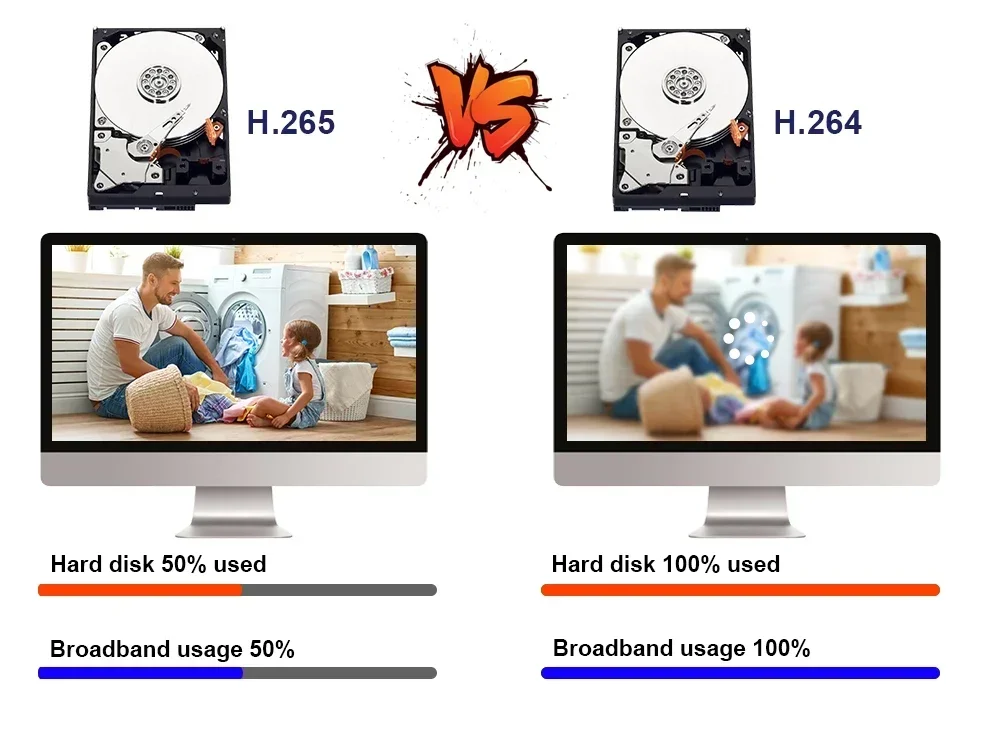

H.265 Advantage
H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.

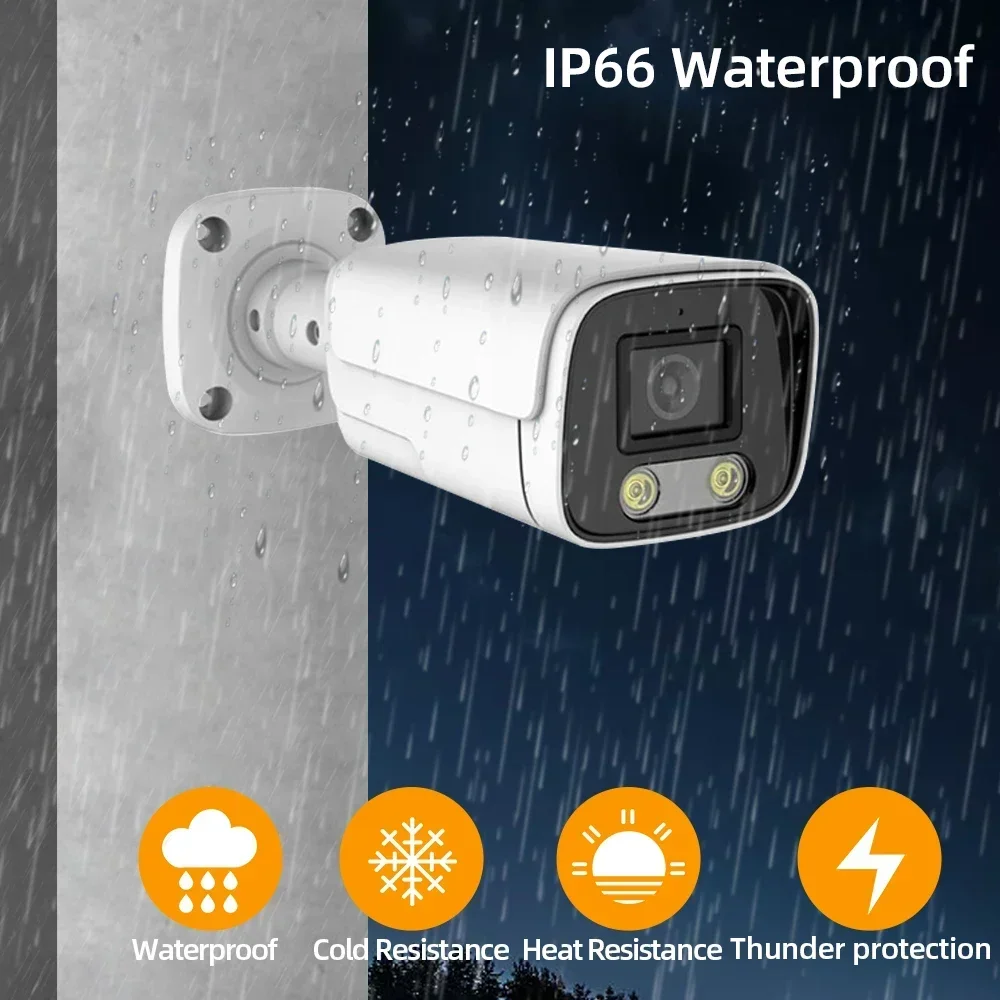

Outddor Weatherproof
Use them as outdoor cameras or indoor cameras, as they are built tough towithstand whatever the weather throws as then:rain,snow,dust and hot days .with IP66 weatherproof rating ,and cables threaded through the stand for extraprotection ,ensure you can reply on their performance,day in ,day out.Our camera adopts heavy-duty metal housing,professional IP66 weatherproof,Providing stable performance both indoor and outdoor.
Motion Detection & E-mail Alert
Can set up the area you want to control,When it is triggered,it will send message to your email ,You can get the first hand information ,no matter when and where you are .
Smart Playback
You can easy find the video footage you'd like to playback,Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos.

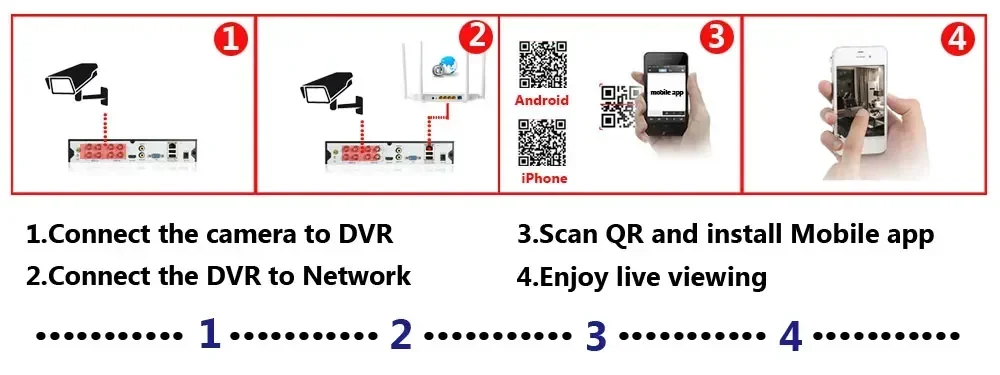

Easy remote view setting
Easy setting , just 4 steps for mobile phone viewing,View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy!!!

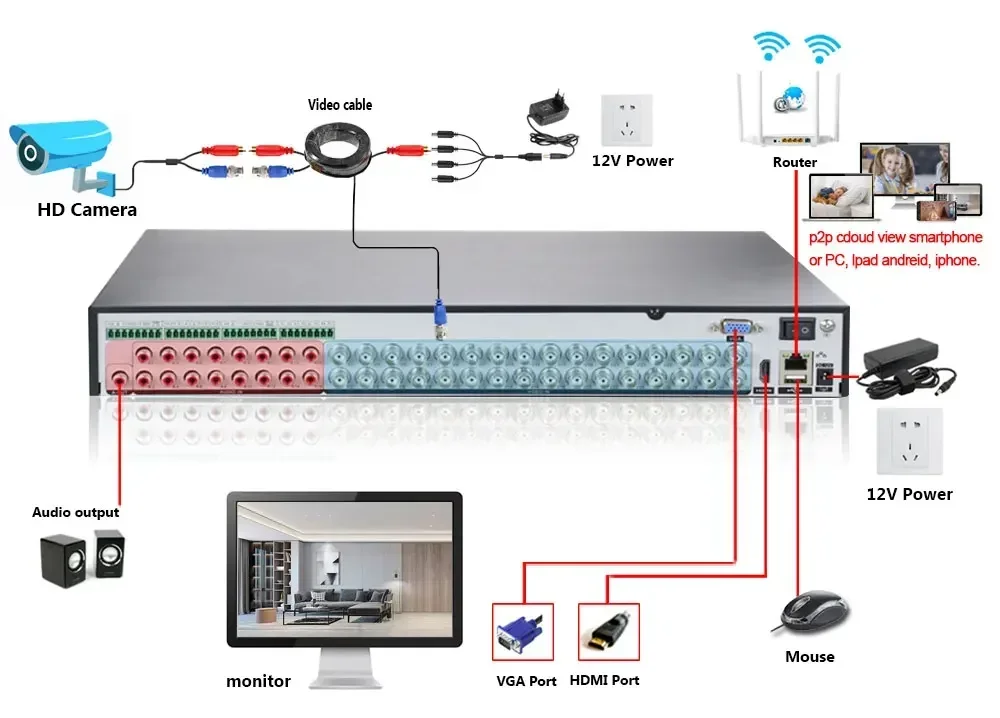

Connection Diagram
The cctv security system is plug and play ,easy to set up,Making lift more easier.Remote viewing anywhere anytime.
Remote access anywhere,anytime
Support ios, Android,Windows PC. With the free app IP PRO. you'll know that's happening even when you're not around, Receive notifications and view live or recorded footage right from your phone.
H.265 32CH 5MP DVR Specifications:
system
Main processor: Main processor
Operating System: Embedded Linux
Video compression: H.265
System resources: Simultaneously multi-channel real-time recording,playback,network operation,USB backup
interface
Operation interface: support 16-bit true color graphical menu interface and mouse operation
video
Codec: H.265+
Monitor quality:VGA,HDMI:HD
Encode ability:32*4M@8fps;32*5M@6fps;32*4K-N @7fps
Decode ability:16*4M@8fps(AHD);16*5M@6fps;8*4K-N@7fps
Analog input: 32*4MP/32*5MP
Network only: 32*1080P;16*3MP ;8*5MP(IP)
Motion detection: support
Email reminder: Support
Face detection: support
Face playback: support
Intelligent playback: support
Remote access: support
Vocal
Audio compression: G.711A
Intercom:support
Walkie-talkie: yes
Recording/playback
Recording method: manual>alarm>motion detection>timing
Local playback: 5MP
Storage & backup
Space occupation:720P ~20G/ day*channel ;960H 12~20G/ day*channel;audio:691.2M/ day*channel
Video storage: HDD, network
Backup methods: Network, USB hard disk, USB burner, SATA burner
interface
Video input: 32CH BNC
Video output: 1ch VGA(MAX:1080P),HDMI(MAX 5MP)
Loop output: Not applicable
Audio input/output: 16RCA/1RCA
Alarm input/output: 8/1
Network interface: RJ45 10M/100M self-adaption
PTZ control:1*RS485, 1*RS232;Support for multiple PTZ protocol
USB port: 2* USB 2.0
Hard disk interface: 4* SATA interface, maximum support 4* 8TB (hard disk optional)
other
Power supply: DC 12V
Power Consumption:<48W (without HDD)
USB mouse: included
Remote control: included
Temperature: -20℃+50℃
Humidity: -10%-90%
Size: L440mm* W290mm* H50mm
Weight: 6KG
Hard Disk Video Recorder Language
Russian, English, Finnish, French, German, Greek, Italian, Japanese, Polish, Protugal, Spanish, Thai, Turkish, Romanian, Slovak, Czech, Arabic, Swedish, etc
H.265 5.0MP AHD Camera Specifications
Video
Video Compression:H.265
Image sensor:1/3"inch 5.0 megapixel
Video quality:5.0MP
Lens:3.6mm lens
Day/Night Mode:Color During day/switches to B&W at night
Full Color Night Mode:Support
General
Operating Power:DC 12V
Operating Temperature:-50°F~122°F / -40°C ~50°C
Minimum Illumination: 0.01 Lux
Setting:Brightness, Contrast,Saturation,Sharpness,White balance
Auto-exposure control (AEC): Auto white balance (AWB); Auto band filter (ABF)
Noise Reduction: Support 2D/3D
BitRate Control:VBR/CBR
Digital WDR: Support
Email Alerts:Support
Motion Detection:Support
Weatherproof
IP66 Weatherproof:Support
Housing material:Metal
Indoor / Outdoor:Suitable for Indoor or Outdoor use
Night Vision
Day night vision:Support
Distance:Up to 40m
IR Cut Filter:yes
Number of IR Lens:2pcs Array IR leds
You Can Install It In There Place
Application:Home,supermarket,hotel,garden,factory,shop office,,,etc,
