4K Ultra HD CCTV AHD DVR Kit
4K Ultra HD CCTV AHD DVR Kit
Description
Description
Main Features:
1,Ultra HD 4K High Definition Display,6 IN 1 Hybrid Digital Video Recorder;
2.Ultra HD 8MP AHD Camera,metal material,IP66 Waterproof,Suitable for indoor and outdoor; Dustproof, reliable home security;
4.Advanced H.265 Video Compression,Plug and play ,Easy Setup;
3.Support Face Detection,Face Playback,Provides ultra high definition surveillance video images, providing maximum detail and clarity available;
4.all camera support 500 meters transmission distance,Up to 30-40m night vision with Smart IR , Clear day and night vision with auto IR-cut;
6.Support Motion Detection, Email Alerts, Video Playback and Multi-Language;
7.Support Android,Iphone,Ipad,PC,VMS,P2P view;
8,Remote Access Anywhere,Anytime;

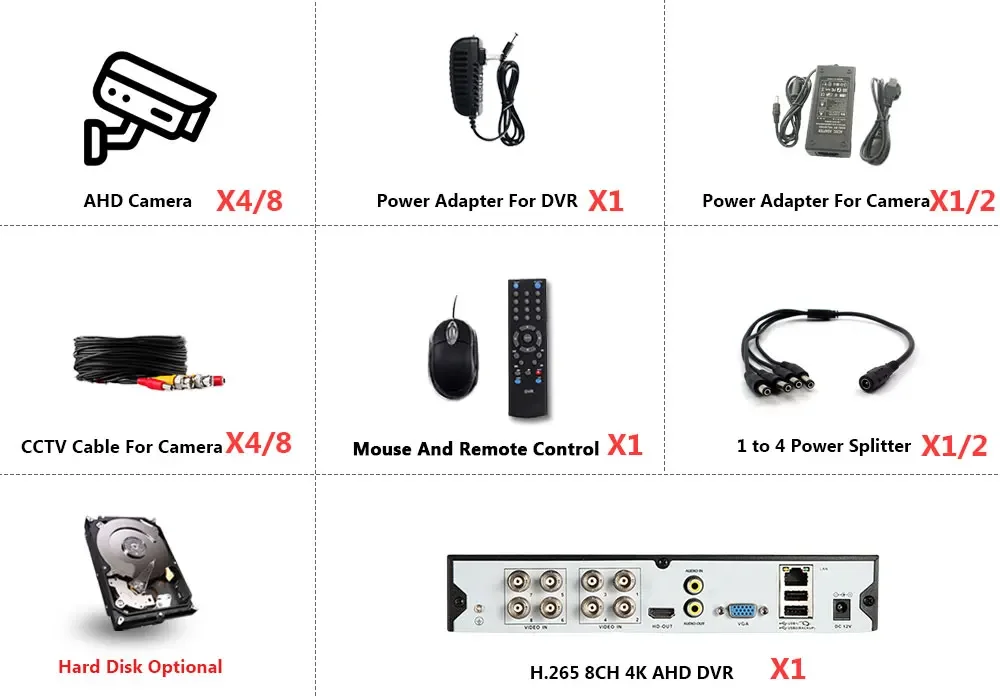

Packing List:
4/8 x HD 8.0MP indoor and outdoor infrared Day night vision camera;
4/8 x 20m CCTV camera video cable
1/2 x camera power adapter
1/2 X 1 TO 4 PANEL CABLES
1 DVR power adapter;
1 DVR USB mouse;
1 DVR remote control;
Optional Hard Disk!!!!
Face Detection & Face Playback
Face Detection and Face playback and Face Record;Quickly capture face images and quickly play back face videos;Face Detection:automatically capture face images;Intelligent Face Playback: Intelligent Face video playback, saving time, not missing every details.
4K High Quality Video
High-Definition interface output,Suport for online playback,Mobile remote,Multi-window display with 8.0MP Resolution.The angle will be more larger,and the image will be more clearer.
Ultra HD Day &Night Vision View
Every day real-time for you to provide high-quality video images, to bring you a different visual experience
H.265 Advantage
H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.
Outddor Weatherproof
Use them as outdoor cameras or indoor cameras, as they are built tough towithstand whatever the weather throws as then:rain,snow,dust and hot days .with IP66 weatherproof rating ,and cables threaded through the stand for extraprotection ,ensure you can reply on their performance,day in ,day out.Our camera adopts heavy-duty metal housing,professional IP66 weatherproof,Providing stable performance both indoor and outdoor.
Motion Detection & E-mail Alert
Can set up the area you want to control,When it is triggered,it will send message to your email ,You can get the first hand information ,no matter when and where you are .
Smart Playback
You can easy find the video footage you'd like to playback,Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos.
Easy remote view setting
Easy setting , just 4 steps for mobile phone viewing,View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy!!!
Connection Diagram
The cctv security system is plug and play ,easy to set up,Making lift more easier.Remote viewing anywhere anytime.
Remote access anywhere,anytime
Support ios, Android,Windows PC. With the free app XMEYE PRO. you'll know that's happening even when you're not around, Receive notifications and view live or recorded footage right from your phone.
H.265 8CH 4K DVR Specifications
System
Main processor: Embedded processor
Operating system: Embedded Linux
Video compression:H.265
System resource:Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up
Interface
Operation interface:16bit real color GUI interface support
Preview : 1/4/8/9
Video
Video standard :PAL; NTSC
Image encode:H.265
Monitor quality: VGA,HDMI:High definition
Analog input :8CH*8MP/8CH*5MP
Hybird input: 8CH*8MP(Analog)+4CH*5MP(Network)
Network input:8CH*5MP /16CH*1080P
Motion detection:Support
Email Alert : Support
Face Detection:Support
Face Smart Playback:Support
Remote Access:Support
Audio
Audio compression :G.711A
Intercom : Yes
Record&Playback
Record mode:manual>alarm>motion detection>timing
Local playback:8MP
Video search:Time, date, event, channel search
Storage&Back up
Video storage : Local HDD ,Network
Back up mode: Network backup, USB portable,HDD,USB imprint,SATA imprint
Interface
Video input:8CH BNC
Video output : 1ch VGA,1ch HDMI HD output
Loop output : N/A
Audio I/O :1CH input/1CH Output
Alarm I/O:N/A
Network port:1* POE RJ45 1000M self-adaptive Ethernet port;
USB port : 2* USB 2.0
HDD port :1 SATA ports,max support 1*8TB(HDD is optional)
Other
Power :DC 12V
USB Mouse:included
Remote Control : included
Temperature : -20℃+50℃
Humidity : -10%-90%
Dimension : L255mm* W225mm* H45mm
Weight :1.5KG
DVR Language
Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on
H.265 8.0MP AHD dome Camera Specifications
Video
Video Compression:H.265
Image sensor:1/3"inch 8.0 megapixel
Video quality:8.0MP
Lens:3.6mm lens
Day/Night Mode:Color During day/switches to B&W at night
General
Operating Power:DC 12V
Operating Temperature:-50°F~122°F / -40°C ~50°C
Minimum Illumination: 0.01 Lux
Setting:Brightness, Contrast,Saturation,Sharpness,White balance
Auto-exposure control (AEC): Auto white balance (AWB); Auto band filter (ABF)
Noise Reduction: Support 2D/3D
BitRate Control:VBR/CBR
Digital WDR: Support
Email Alerts:Support
Motion Detection:Support
Weatherproof
IP66 Weatherproof:Support
Housing material:Metal
Indoor / Outdoor:Suitable for Indoor or Outdoor use
Night Vision
Distance:Up to 40m
IR Cut Filter:yes
Number of IR Lens:20pcs IR LEDs
H.265 8.0MP AHD Bullet Camera Specifications
Video
Video Compression:H.265
Image sensor:1/3"inch 8.0 megapixel
Video quality:8.0MP
Lens:3.6mm lens
Day/Night Mode:Color During day/switches to B&W at night
General
Operating Power:DC 12V
Operating Temperature:-50°F~122°F / -40°C ~50°C
Minimum Illumination: 0.01 Lux
Setting:Brightness, Contrast,Saturation,Sharpness,White balance
Auto-exposure control (AEC): Auto white balance (AWB); Auto band filter (ABF)
Noise Reduction: Support 2D/3D
BitRate Control:VBR/CBR
Digital WDR: Support
Email Alerts:Support
Motion Detection:Support
Weatherproof
IP66 Weatherproof:Support
Housing material:Metal
Indoor / Outdoor:Suitable for Indoor or Outdoor use
Night Vision
Distance:Up to 40m
IR Cut Filter:yes
Number of IR Lens:6pcs Array IR LEDs
You Can Install It In There Place
Application:Home,supermarket,hotel,garden,factory,shop office,,,etc,
