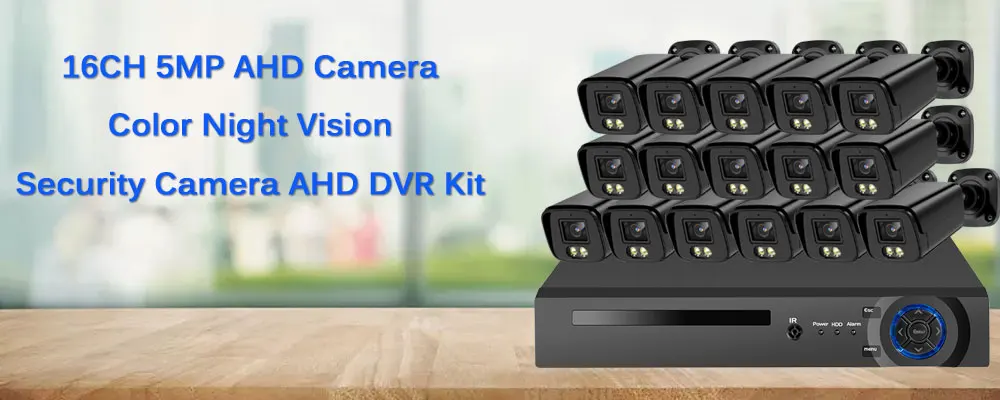

5MP 16PCS AHD Security Camera System
5MP 16PCS AHD Security Camera System
Description
Description
Description

Main Features:
1.5MP Ultra HD Video,Advanced H.265 Video Compression;
2.HD 5MP AHD Camera& 6 in 1 Hybrid Digital Video Recorder;
3.Support AI Human Detection& Face Human Playback;
4.All Cameras Support Full Color Day Night Vision;
5.All cameras adopts heavy-duty metal housing,IP66 Weatherproof Outdoor;
6.Ultra HD Day & Night Vision,Plug and Play,Easy to Setup;
7.Support Android,iphone,ipad,pc,vms view;
8.Support Motion Detection, Email Alerts, Video Playback,and Multi-Language;
9. Remote View Anywhere Anytime;

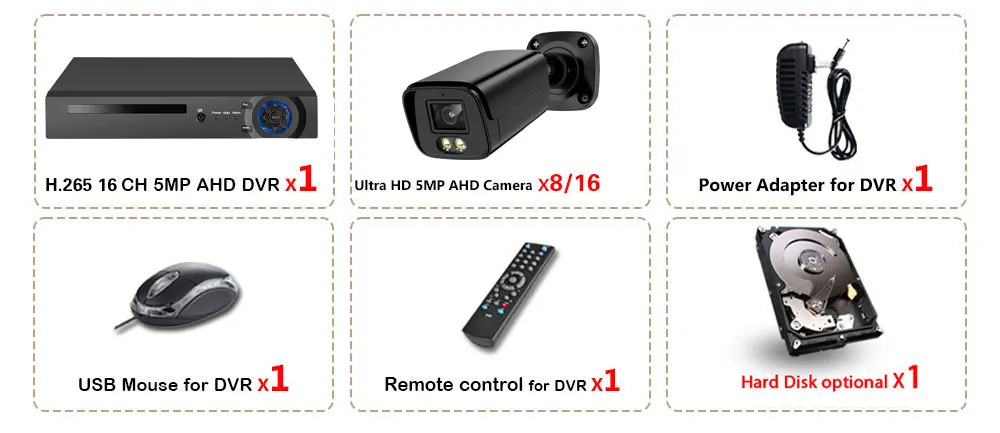

Packing List:
1 X 16CH H.265 AHD 5MP DVR NVR HVR 6 in 1 Digital Video Recorder;
8/16 X HD 5.0MP indoor outdoor IR Full Color Night vision weatherproof cameras;
1 X power adapter for DVR;
1 X USB Mouse for DVR;
1 X Remote Control for DVR;
Hard Disk optional !!!!
Video cable not included !!

Face Detection & Face Playback
Face Detection and Face playback and Face Record;Quickly capture face images and quickly play back face videos;Face Detection:automatically capture face images;Intelligent Face Playback: Intelligent Face video playback, saving time, not missing every details.

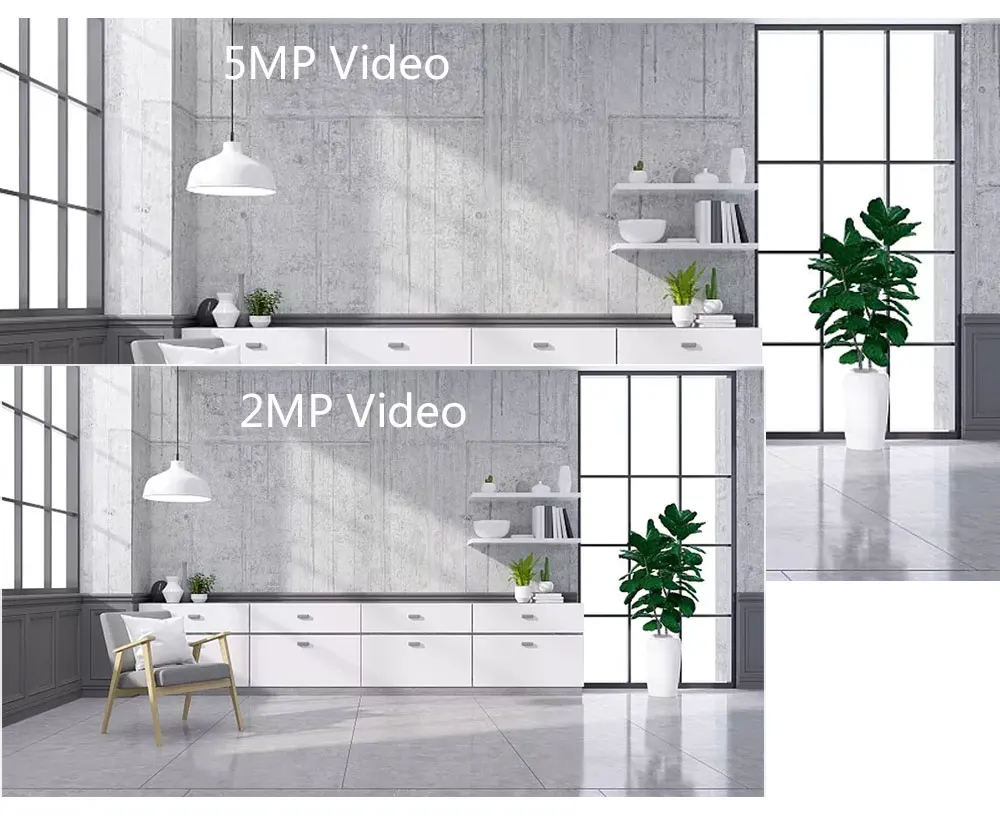

5MP High Quality Video
High-Definition interface output,Suport for online playback,Mobile remote,Multi-window display with 5.0MP Resolution.The angle will be more larger,and the image will be more clearer.

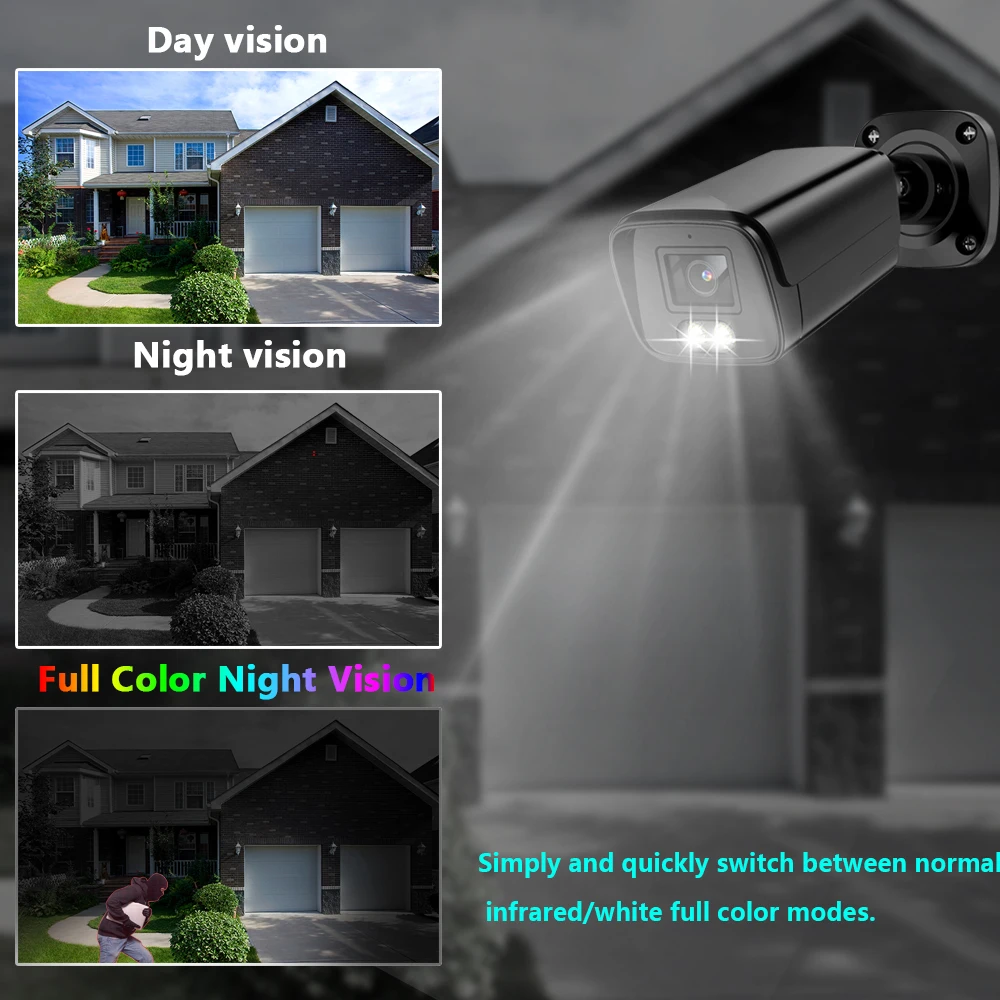

Ultra HD Full Color Day Night Vision
The smart IR-Cut filter switches automatically between day and night toreduce color cast in day time and enhance image brightness
at night making sureyou can get vivid surveillance footage from dawn to dark.

H.265 Advantage
H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.

Outddor Weatherproof
Use them as outdoor cameras or indoor cameras, as they are built tough towithstand whatever the weather throws as then:rain,snow,dust and hot days .with IP66 weatherproof rating ,and cables threaded through the stand for extraprotection ,ensure you can reply on their performance,day in ,day out.Our camera adopts heavy-duty metal housing,professional IP66 weatherproof,Providing stable performance both indoor and outdoor.

Motion Detection & E-mail Alert
Can set up the area you want to control,When it is triggered,it will send message to your email ,You can get the first hand information ,no matter when and where you are .

Smart Playback
You can easy find the video footage you'd like to playback,Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos.

Easy remote view setting
Easy setting , just 4 steps for mobile phone viewing,View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy!!!

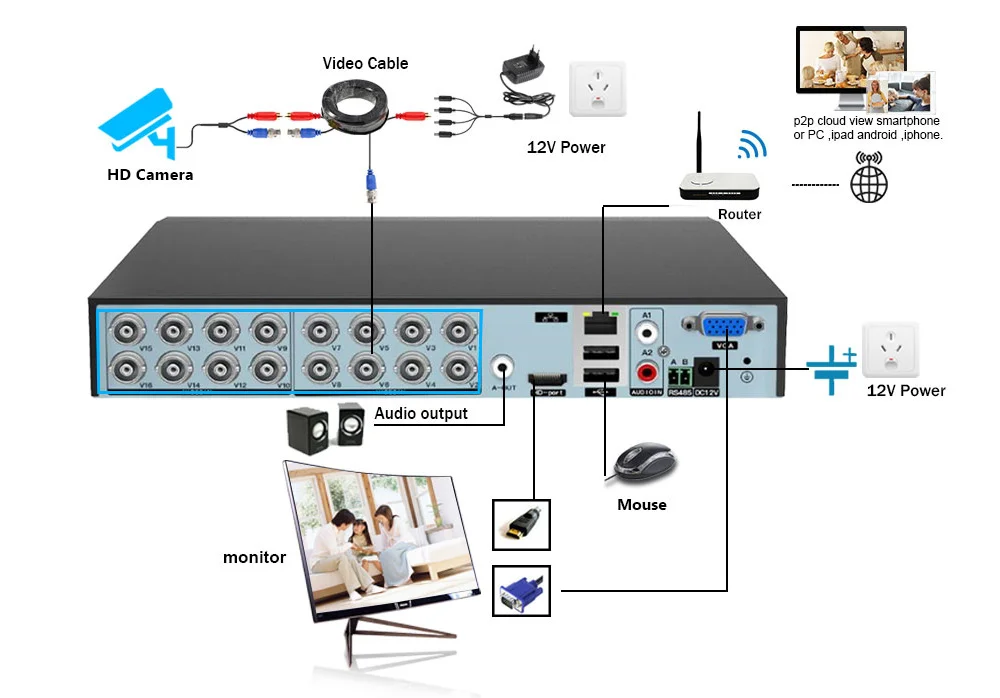

Connection Diagram
The cctv security system is plug and play ,easy to set up,Making lift more easier.Remote viewing anywhere anytime.

Remote access anywhere,anytime
Support ios, Android,Windows PC. With the free app XMEYE PRO. you'll know that's happening even when you're not around, Receive notifications and view live or recorded footage right from your phone.

H.265 16CH 5MP DVR Specifications
System
Main processor: Embedded processor
Operating system: Embedded Linux
Video compression:H.265
System resource:Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up
Interface
Operation interface:16bit real color GUI interface support
Preview : 1/4/8/9/16
Video
Video standard :PAL; NTSC
Image encode:H.265
Analog input :16CH*5MP/16CH*4MP
Hybird input: 16CH*4MP(Analog)+16CH*1080P(Network)
Network input:4CH*5MP / 16CH*1080P
Motion detection:Support
Email Alert : Support
Audio
Audio compression :G.711A
Intercom : Yes
Record&Playback
Record mode:manual>alarm>motion detection>timing
Local playback:5MP
Video search:Time, date, event, channel search
Storage&Back up
Video storage : Local HDD ,Network
Back up mode: Network backup, USB portable,HDD,USB imprint,SATA imprint
Interface
Video input:16CH BNC
Video output : 1ch VGA,1ch HD output
Loop output : N/A
Audio I/O :6CH input/1CH Output
Alarm I/O:4CH Input/1CH Output
Network port:1* POE RJ45 1000M self-adaptive Ethernet port;
USB port : 2* USB 2.0
HDD port :2 SATA ports,max support 2*8TB(HDD is optional)
Other
Power :DC 12V
ONVIF :Support
USB Mouse:included
Remote Control : included
Temperature : -20℃+50℃
Humidity : -10%-90%
Dimension : L370mm* W305mm* H70mm
Weight :3.5KG
DVR Language
Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on

H.265 5.0MP AHD Camera Specifications
Video
Video Compression:H.265
Image sensor:1/3"inch 5.0 megapixel
Video quality:5.0MP
Lens:3.6mm lens
Day/Night Mode:Color During day/switches to B&W at night
Full Color Night Mode:Support
General
Operating Power:DC 12V
Operating Temperature:-50°F~122°F / -40°C ~50°C
Minimum Illumination: 0.01 Lux
Setting:Brightness, Contrast,Saturation,Sharpness,White balance
Auto-exposure control (AEC): Auto white balance (AWB); Auto band filter (ABF)
Noise Reduction: Support 2D/3D
BitRate Control:VBR/CBR
Digital WDR: Support
Email Alerts:Support
Motion Detection:Support
Weatherproof
IP66 Weatherproof:Support
Housing material:Metal
Indoor / Outdoor:Suitable for Indoor or Outdoor use
Night Vision
Day night vision:Support
Distance:Up to 40m
IR Cut Filter:yes
Number of IR Lens:2pcs Array IR leds

You Can Install It In There Place
Application:Home,supermarket,hotel,garden,factory,shop office,,,etc,

Shipping
We will send the goods out within 1-2 working days after your payment is verify by Aliexpress Currently, almost all products in our store are free shipping. Items which below 2KG are shipped by Aliexpress shipping as default. Items higher than 2KG are shipped by DHL,TNT ,FEDEX ,UPS Express shipping as a default ,We will send the goods according to the logistics method you choose.
1. If Your Address is Defined As Remote Area, You'll Need Pay Extra Remote Shipping Fee. Or Please Give Us a New Another Address That Is Not Remote.
2. If You Have Any Change For the Order, Please Leave Message In The Order.
3. Custom Duty:
We Do Not Cover Any Tax and Duty! Buyers are Responsible For Duty/Taxes.
Warranty&Return
Warranty
All merchandise we sell are in good quality and under strict examination before they are shipped out. We will try our best to avoid any quality problem.We warrants this product against defects in workmanship and material for a period of 3 years from it's original purchase date.Any unit which proves defective during the warranty validation period will be repaired without charge for parts or replaced. The end user is responsible for all freight charges incurred to send the products to our repair center.The warranty does not cover any incidental, accidental or consequential damages arising from the use of. Any costs associated with the fitting or removal of this product by a tradesman or other person or any other costs associated with its use are the responsibility of the end user. This warranty applies to the original purchaser of the product only and is not transferable to any third party.
Return
Item could be returned for refund or replacement within 30 days from the date you receive it. Returned merchandise must be unused,in original packaging and include all accessories. Original shipping costs are not refundable.Before sending back any return items, please contact with us for a a Return Merchandise Authorization (RMA). Any products returned to seller without an RMA will be void, and we will be sent back to the buyer at his/her expense. Customer should be responsible for all charges of returning and reshipping.Return tracking number will be helpful to this process.Our tech support will deal with the repaired products upon receipt of your return parcel. Please feel free to contact us for any product or service issues
About us
Retail and Wholesale are All Welcome ! The More You Buy, the More Discounts You Get ! Feel Free to Contact us For More Selections!

Camera Lens: 3.6mm
HDD Port: 1*SATA port (Supports up to 8TB HDD)
Mobile Phone Viewing: "xmeye" App
Camera Type: Bullet AHD Camera
Remote View: Android, iPhone, iPad, PC, CMS etc
**Advanced Surveillance Technology**
The 5MP 16PCS CCTV Camera Full Color Night Vision 16CH DVR Security Camera System Set is a state-of-the-art security solution designed to provide comprehensive monitoring and protection. With a resolution of 5MP, the cameras capture high-definition footage, ensuring that every detail is captured with clarity. The 3.6mm lens offers a wide field of view, allowing you to monitor a larger area with ease. The system is compatible with a wide range of mobile devices, including Android, iPhone, iPad, and PC, making remote viewing a breeze via the "xmeye" App.
**Versatile and User-Friendly**
The system's versatility extends beyond its advanced technology. It supports a variety of recording modes, including manual, alarm, and motion detection, ensuring that you can tailor your surveillance to your specific needs. The system's P2P cloud support allows for easy setup and remote viewing, while the H.265 video compression ensures efficient storage without sacrificing image quality. Whether you're a homeowner looking to secure your property or a business owner aiming to enhance your security measures, this system is designed to meet your needs.
**Reliable and Durable**
The robust construction of the cameras, featuring IP66 weatherproofing, ensures that they can withstand the elements, making them suitable for both indoor and outdoor use. The cameras' heavy-duty metal housing and professional IP66 rating provide stable performance in various weather conditions, from rain to snow to dust. The system's intelligent recognition features, including Face Detection and Face Playback, streamline your monitoring experience by quickly capturing and playing back important footage. With the H.265 DVR, you can enjoy the benefits of a 5MP resolution while saving storage space and reducing costs.
