> 6-channel alarm input and 1-channel alarm output.
> Standard PoE.
> Door station and IPC monitor.
> H.265 and H.264 video decoding.
> High performance & cost-effective.
System
Main Processor
Embedded processor
Operating System
Embedded Linux operating system
Interoperability
ONVIF; SDK
Network Protocol
RTSP; RTP; SIP; DNS; SSH
ROM
128 MB
RAM
128 MB
CPU
Dual core 1.2 GHz
Basic
Screen Type
Capacitive touchscreen
Display
7" TFT
Screen Resolution
1024 × 600
Audio Compression
G.711a; G.711u; PCM
Audio Input
1
Audio Output
Built-in speaker
Audio Mode
2-way Audio
Audio Enhancement
Echo suppression
Audio Bit Rate
16 kHz; 16 bit
Function
Communication Mode
Full digital
Information Release
Receive and view text information released by the management center
Leave Videos
Yes (SD card inserted in VTO is needed)
DND Mode
Do not disturb period can be set; Do not disturb mode
Number of Extensions
Villa: 9 Apartment: 4
Performance
Casing
PC + ABS
Port
Alarm Input
6
Alarm Output
1
Door Bell
Yes (use any alarm input port)
Network
One 10/100 Mbps Ethernet
Storage
Micro SD Card, Max 64 GB (reserved for software)
General
Appearance Color
Black/White
Power Supply
12 VDC 1A; Standard PoE (36–57 V, 0.35 A)
Installation
Surface Mount
Certifications
CE; FCC
Dimensions
189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00")
Operating Temperature
–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity
10%–95% RH (non-condensing)
Operating Altitude
Beneath 3,000 m (9,842.52 ft)
Power Consumption
Standby ≤ 2 W; working ≤ 6 W
Net Weight
0.34 kg (0.74 lb)
Gross Weight
0.58 kg (1.27 lb)
1 . All Dahua products are produced by Dahua, guaranteed original, have been tested before leaving the factory, quality assurance,Please rest assured to use.

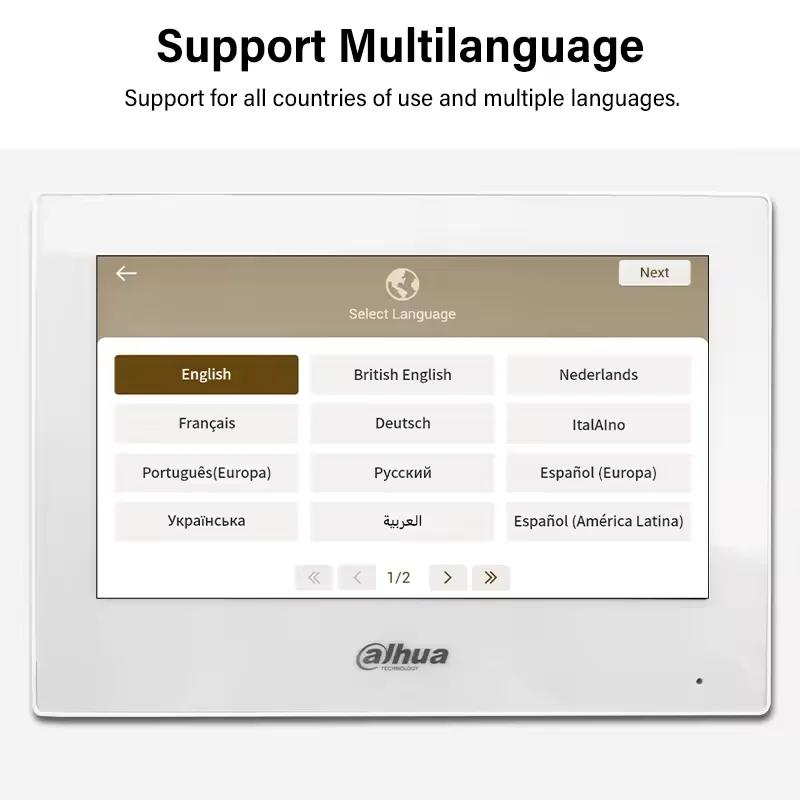

2 . The camera supports multiple languages, And the NVR supports all languages in the world.
3 . Dahua original series support upgrade and P2P, Android and IOS.
1 . After you place an order, we will deliver the goods within 24 hours. When the stock is insufficient, it will take 3 days to purchase. Some products need to be ordered. Dahua takes a month to produce.
2 . All goods are shipped from China, usually most national standard shipping takes 7-60 days to deliver, Fast shipping takes 5- 15 days,
3 . If the goods are damaged due to transportation, please refuse to sign and keep the evidence, And contact us immediately.
1 . When the goods arrive at the local customs, the customs will decide whether to levy tax. Taxation is the obligation of citizens of each country. Please cooperate with customs and logistics service providers for customs clearance. If the package is not processed for a long time, the package will be destroyed or returned, And the loss shall be borne by the buyer.
2 . The taxation of each country is different, Please contact the local customs for inquiries before purchasing.
1. If there is any question, please contact us first, We will give you a satisfactory answer instead of filing a dispute, Which cannot solve the problem better.
2 . If you find that the equipment has quality problems, Please contact us within 7 days from the date of receipt.
3 . If there is a quality problem within one year, we can repair it for free, And the buyer bears the cost of accessories and transportation.
If you are satisfied with our goods and services, please give a 5-Star praise after signing, So that we can provide better goods and services. Great reviews we offer gifts and coupons, Please contact us before your next purchase.
