DC Solar Connector 1000V30A Panel Connectors
DC Solar Connector 1000V30A Panel Connectors
Description
Description

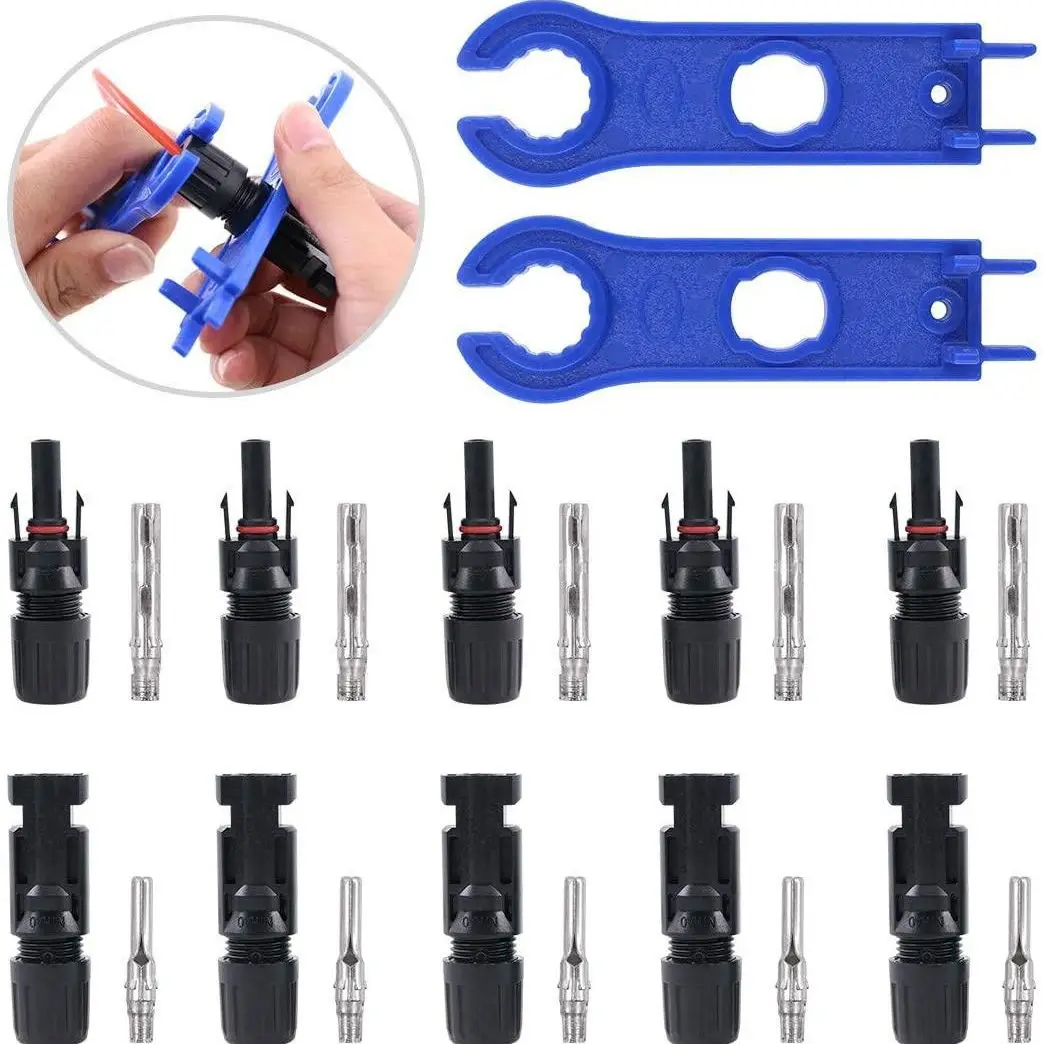

✔ PACKING LIST:

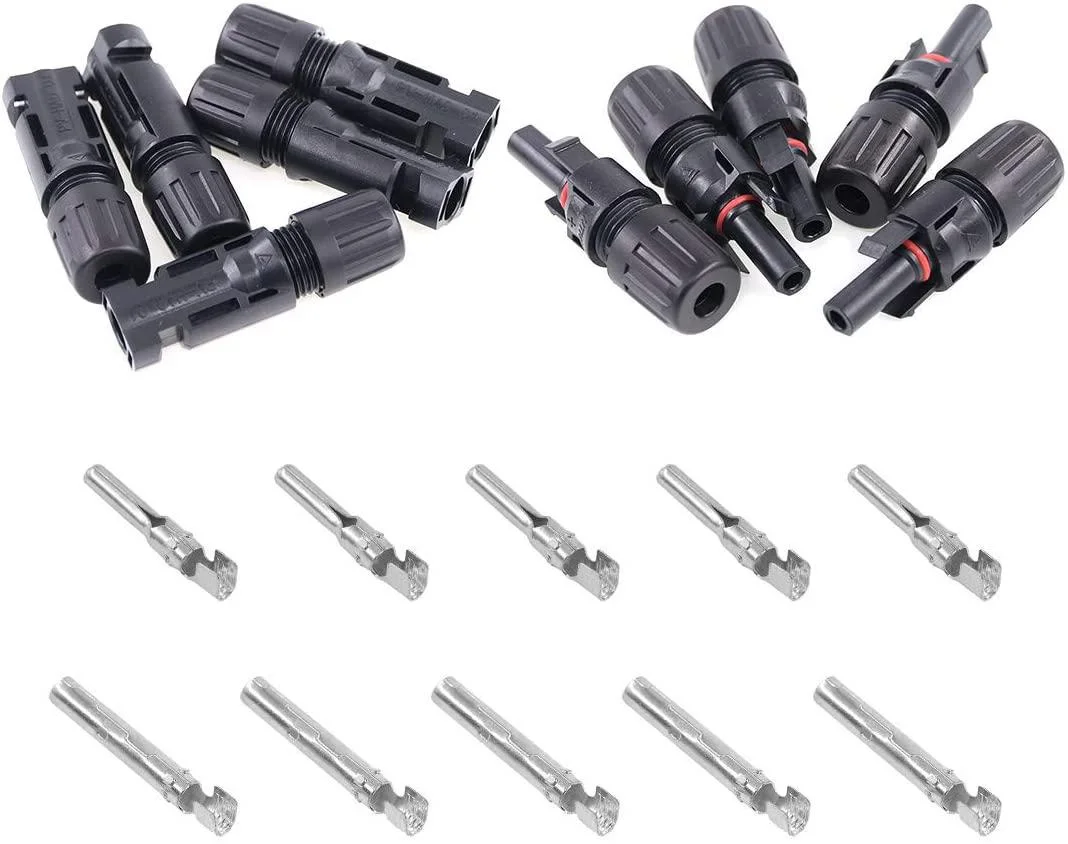

(1) 5 SETS OF PV CONNECTORS (IN PAIR)
(2) 1 SET OF PLASTIC SPANNERS/WRENCHES (IN PAIR)
▲ REMARK: THE MORE QUANTITY YOU BUY, THE MORE DISCOUNT YOU WILL GET.
✔ PRODUCT FEATURES:

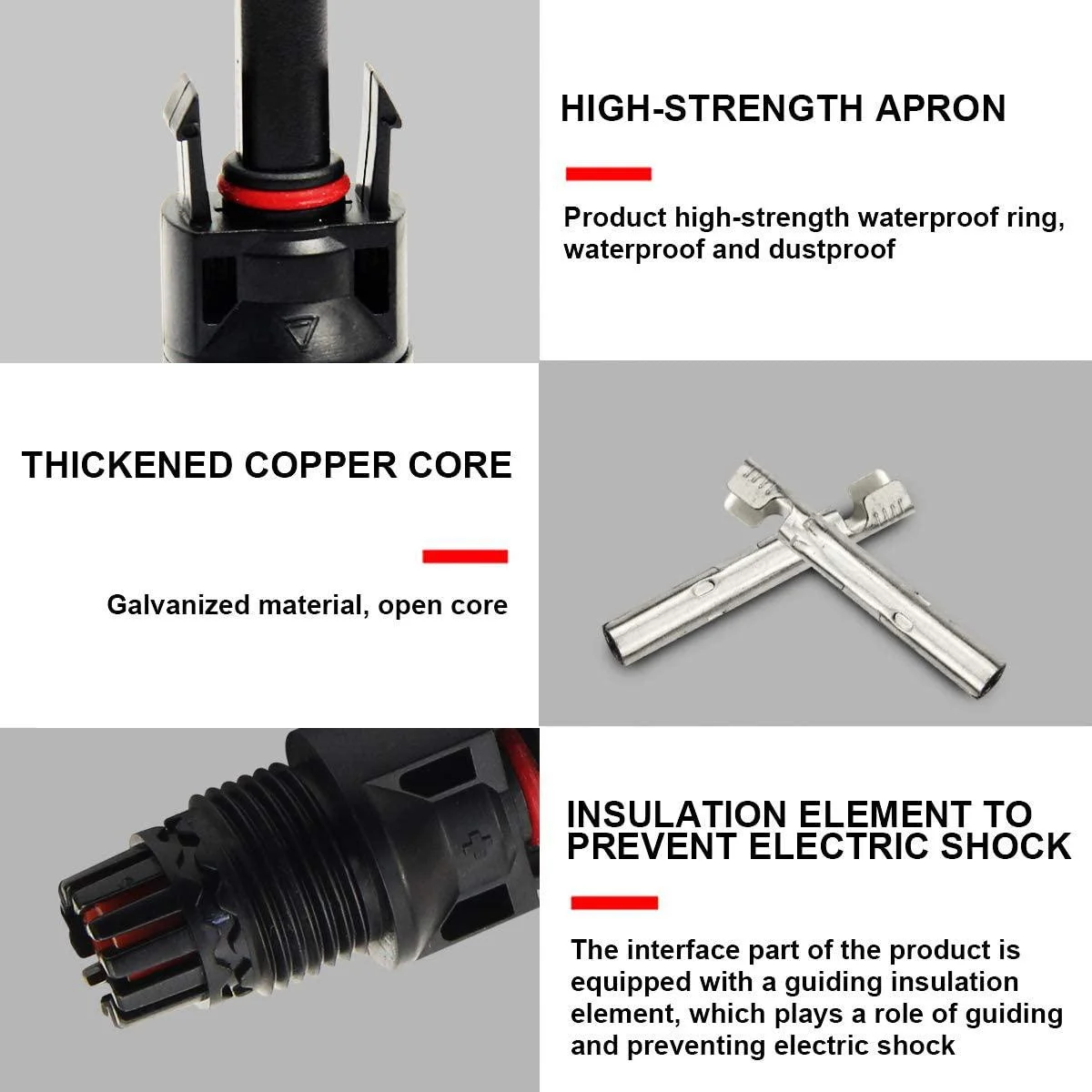

(Ⅰ) SECURITY AND STABLE: PHOTOVOLTAIC CONNECTORS ARE MADE OF PPO MATERIAL. PREMIUM MATERIALS ENSURE THEY CAN WORK IN TEMPERATURE OF -40°C~+110°C. TOTAL BODY FLAME RETARDANT FOR SAFE USING
(Ⅱ) WIDE COMPATIBILITY: THE CONNECTOR CONTACT IS MADE OF COPPER WITH SILVER PLATED FOR STABLE CONNECTION, RATED CURRENT 30A, VOLTAGE 1000V DC. THEY ARE APPLICABLE TO DIFFERENT DIAMETER SOLAR CABLE FROM 2.5MM²/4MM²/6MM² (14AWG-10AWG).
(Ⅲ) WATERPROOF AND DUSTPROOF: STANDARD PHOTOVOLTAIC CONNECTOR WITH WATERPROOF RING, TIGHTLY CONNECTION, KEEPING INSIDE AWAY FROM WATER/DUST. ANTI UV AND ANTI-CORROSION FOR LONGER SERVICE-LIFE.

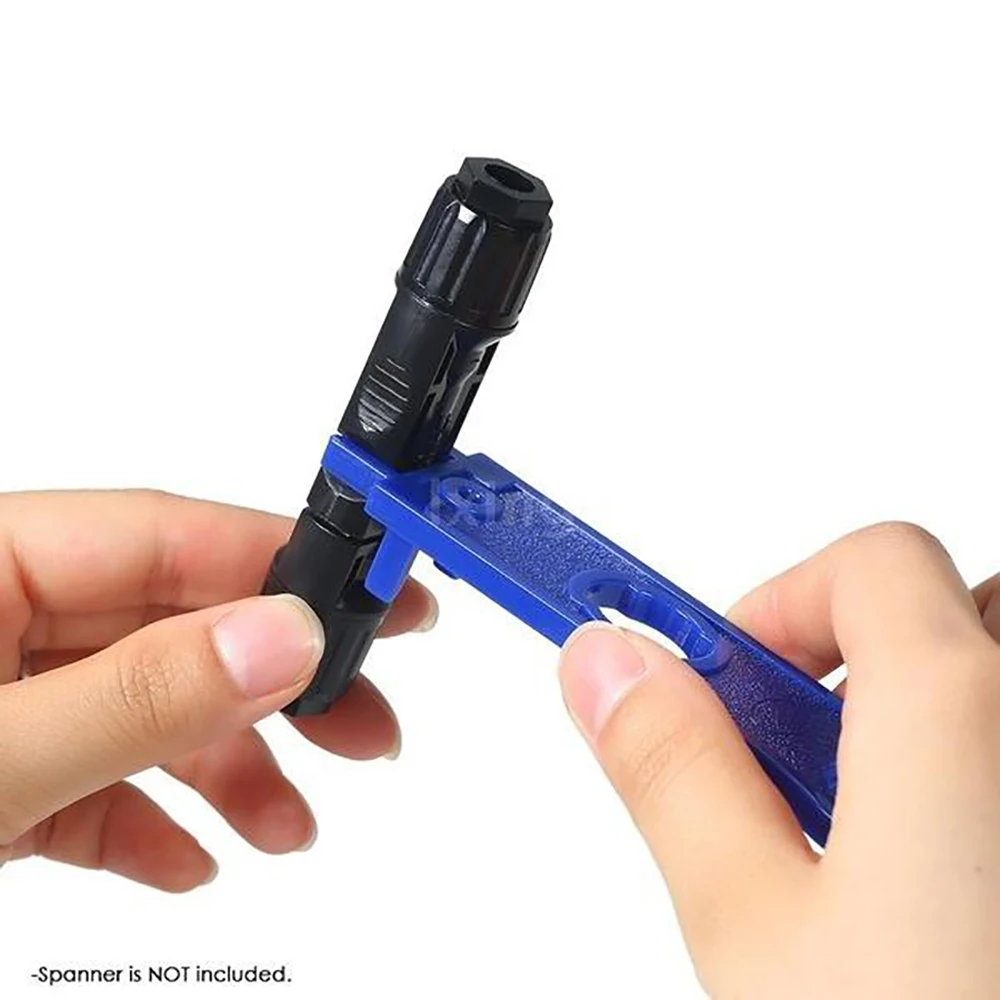

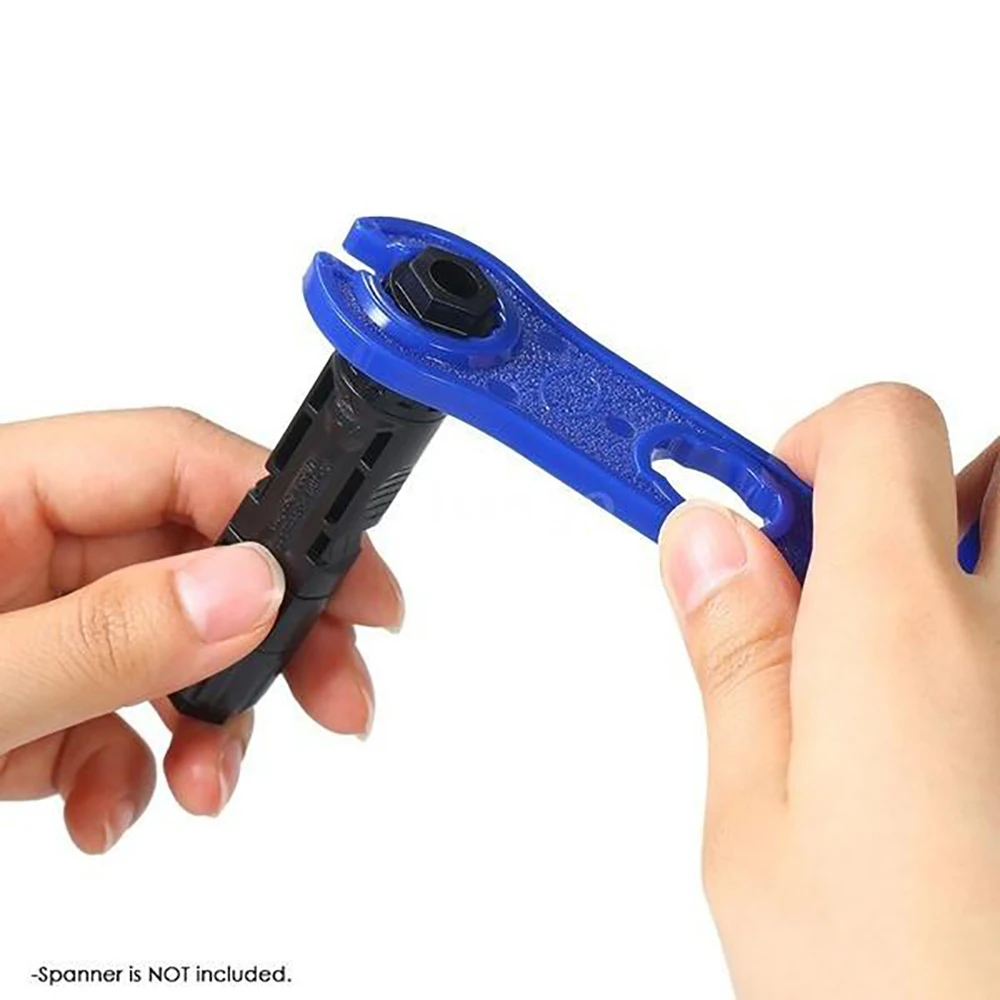

(Ⅳ) PLUG AND PLAY: WITH TWO PHOTOVOLTAIC CONNECTOR SPANNERS, YOU CAN INSTALL THE CONNECTOR QUICKLY AND EASILY.

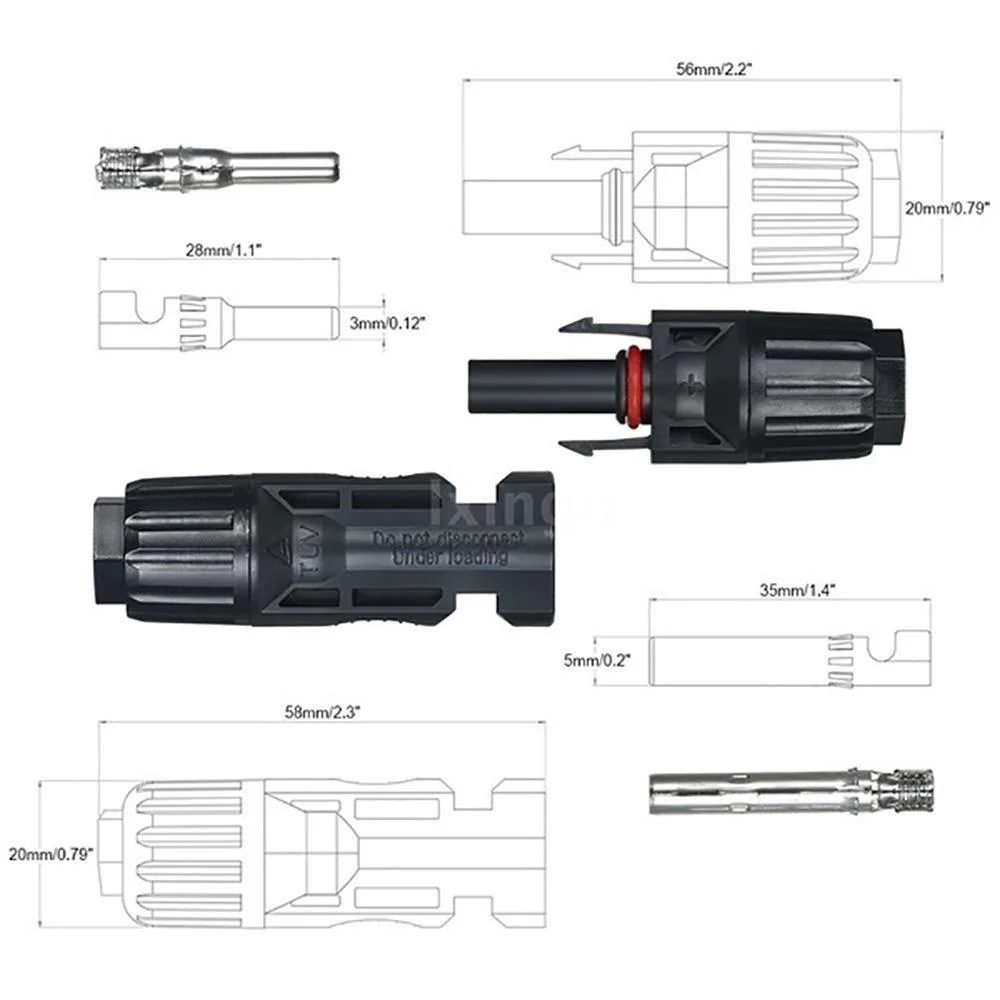

✔ PV CONNECTOR SPECIFICATION:
RATED VOLTAGE: 1000V DC
RATED CURRENT: 30A
TEST VOLTAGE: 6KV (50HZ)
WATERPROOF DEGREE: IP67
INSULATION MATERIAL: PPO
OPERATING TEMPERATURE: -40°C~+125°C
SAFE CLASS: II
FLAME CLASS: UL94-VO
CONTACT RESISTANCE OF PLUG CONNECTORS: ≤5MΩ
INSERTION FORCE: ≤60N
WITHDRAW FORCE: ≥89N
SUITABLE CABLE: 2.5MM²/4MM²/6MM²(AWG14/12/10)

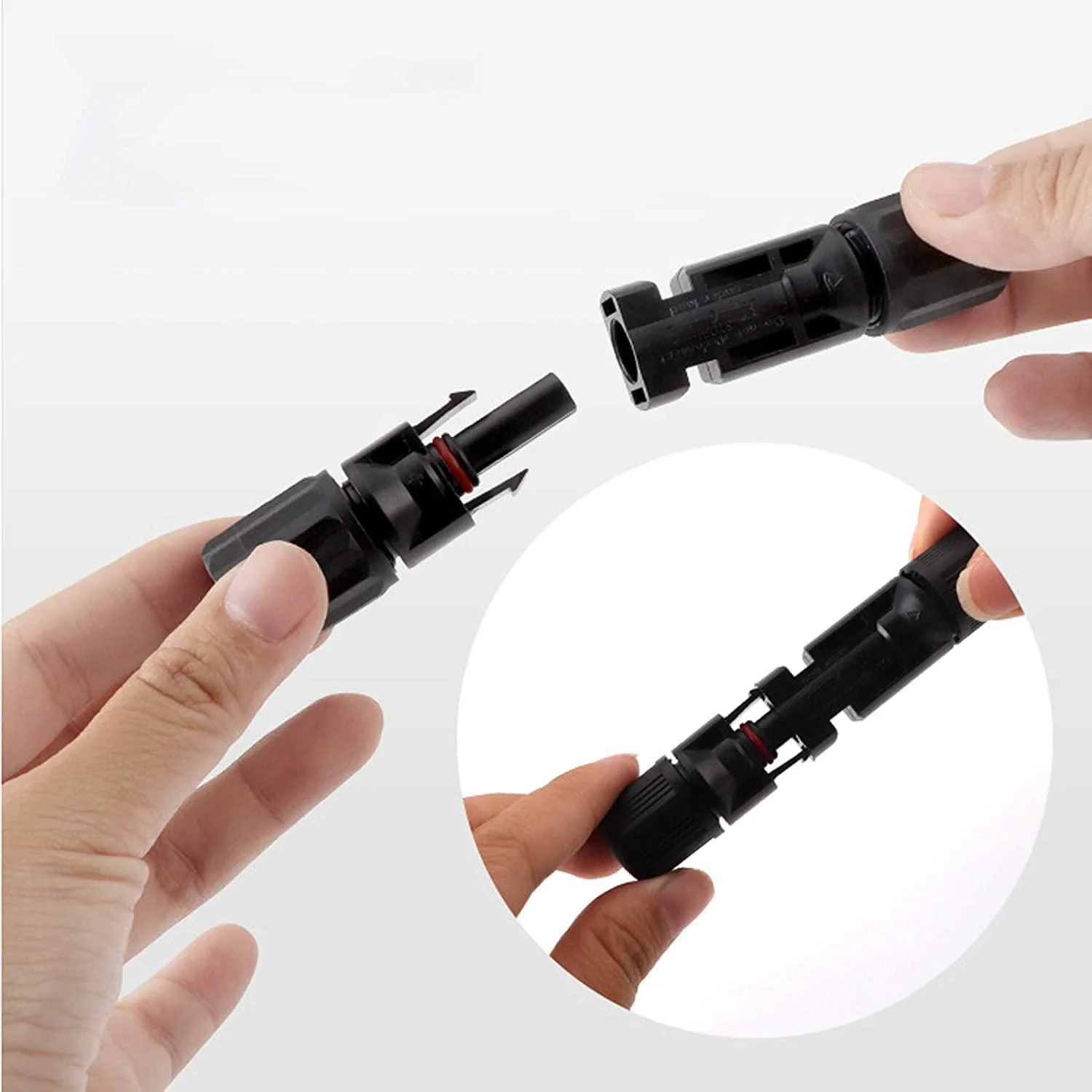

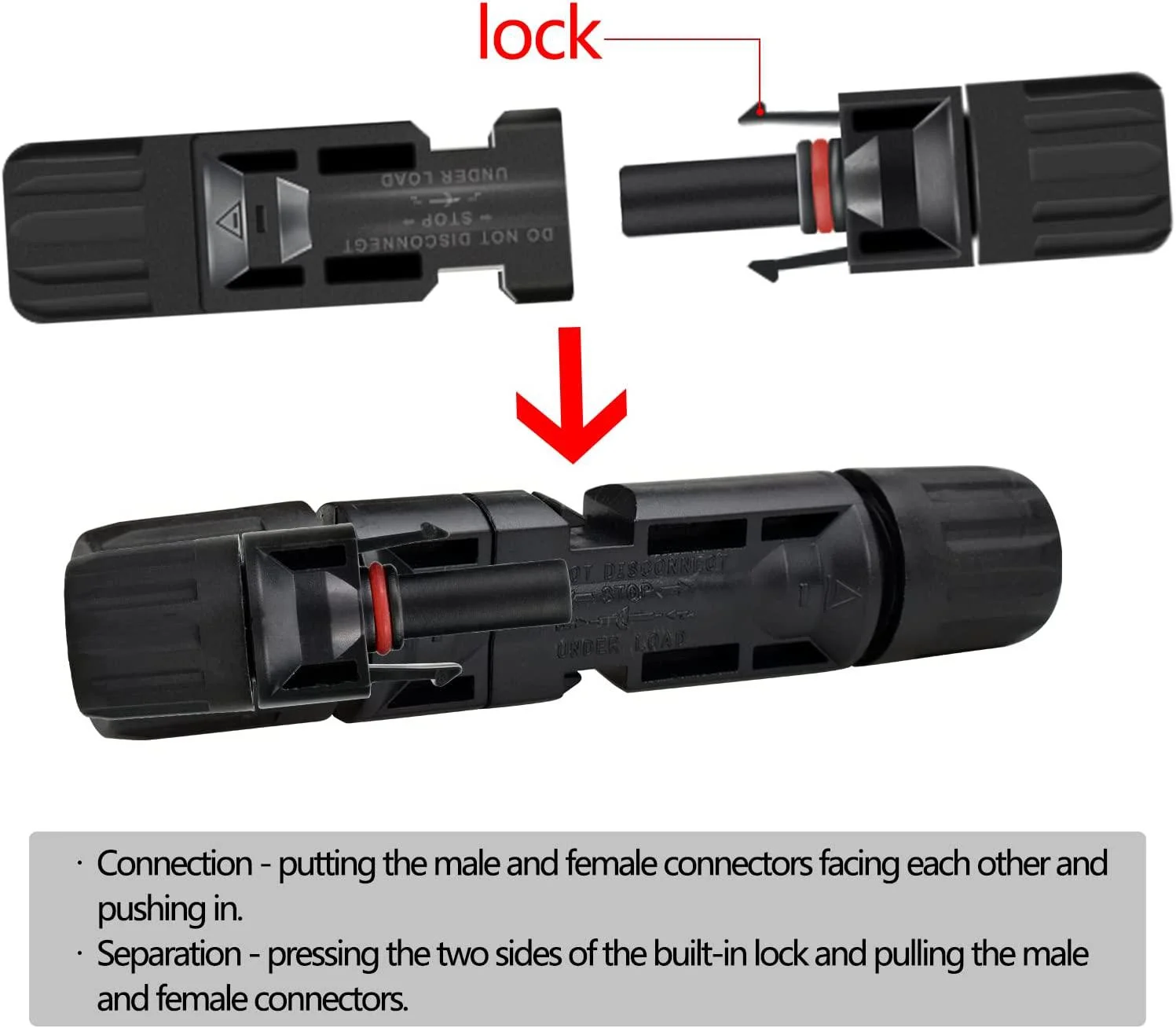

LOCKING SYSTEM: SNAP IN
CONNECTING SYSTEM: CRIMPING CONNECTION

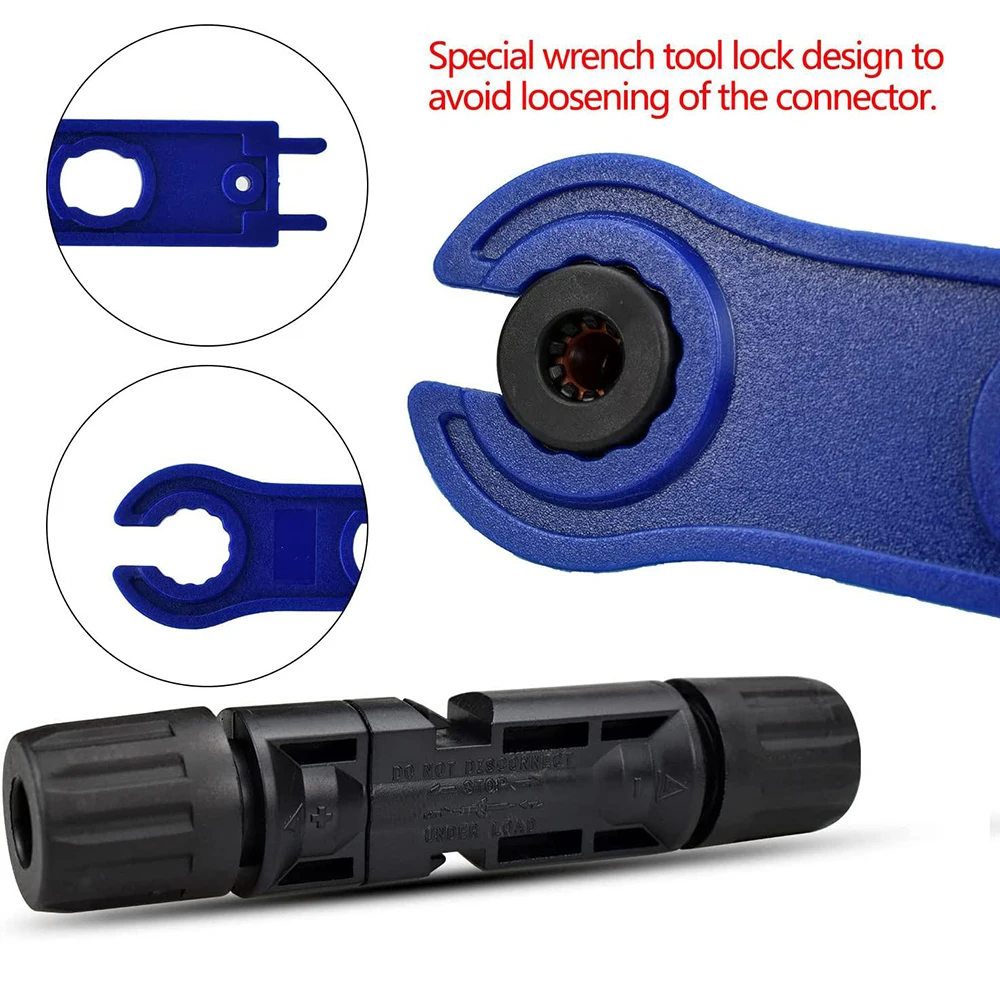

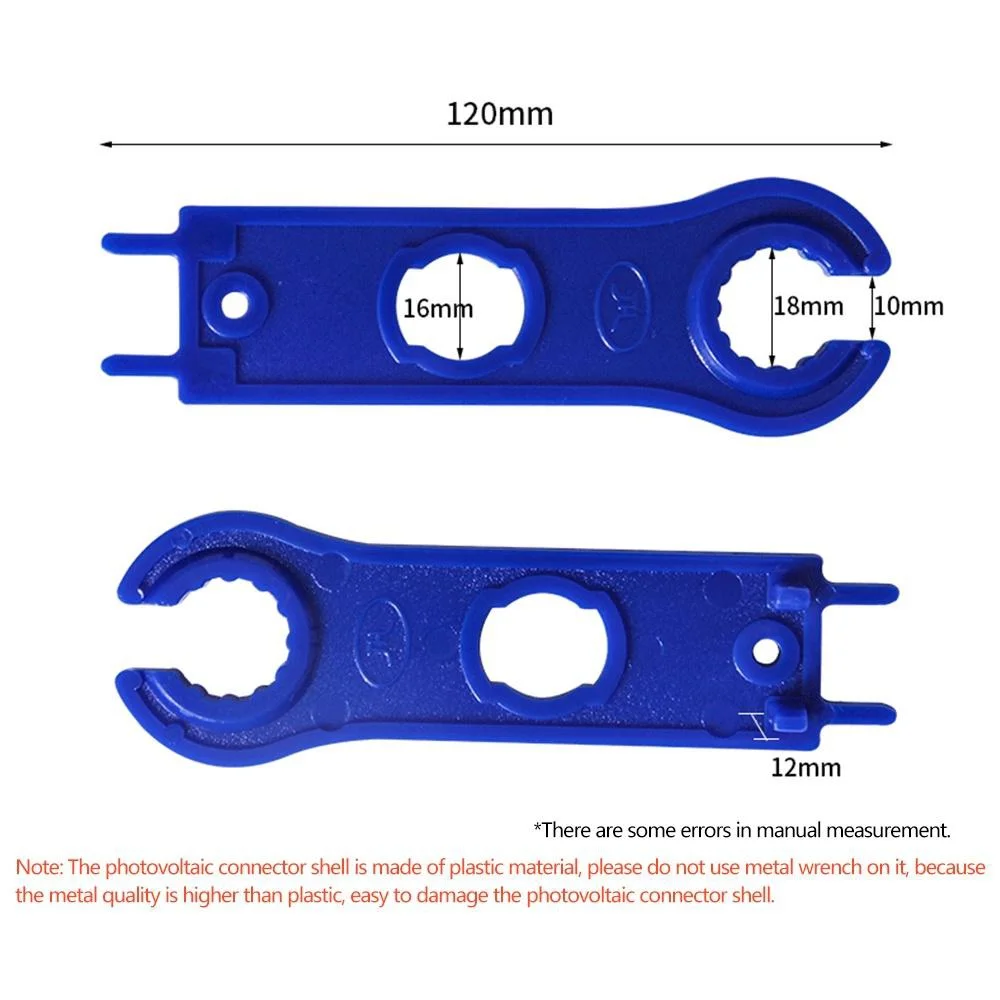

✔ ABOUT CONNECTOR SPANNER (CONNECTOR WRENCH):
MATERIAL: ABS PLASTIC
MAIN COLOR: BLUE
TYPE: OPEN END WRENCH
✔ FEEDBACK:
WE CONCENTRATE ON PROVIDING THE BEST SHOPPING EXPERIENCE FOR OUR CUSTOMERS, IF YOU HAVE ANY QUESTION WITH THE PRODUCT, PLEASE FEEL FREE TO CONTACT US AND WE WILL PROVIDE YOU AN AVAILABLE SOLUTION.
BESIDES, IF YOU ARE SATISFIED AT OUR PRODUCTS AND SERVICES, WE SINCERELY INVITE YOU TO LEAVE POSITIVE FEEDBACK ON THE ORDER. WE ALSO SINCERELY WELCOME YOU PLACE NEW ORDER AGAIN. THANK YOU IN ADVANCE!
