Netcompc
RT2281
RT2281
Description
Description
Before order, please send your Screen model to us, so we can help you install firmware and match the right lvds cable and backlight.

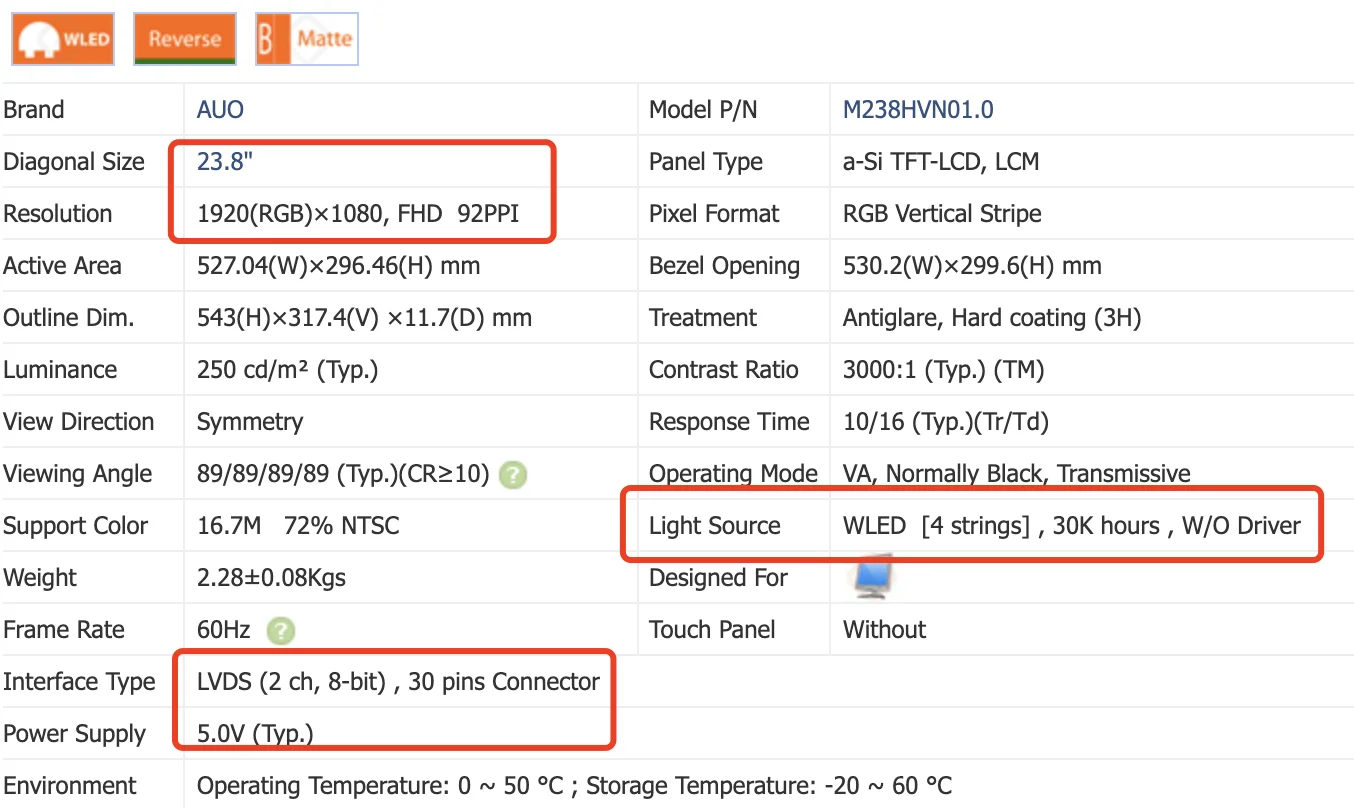

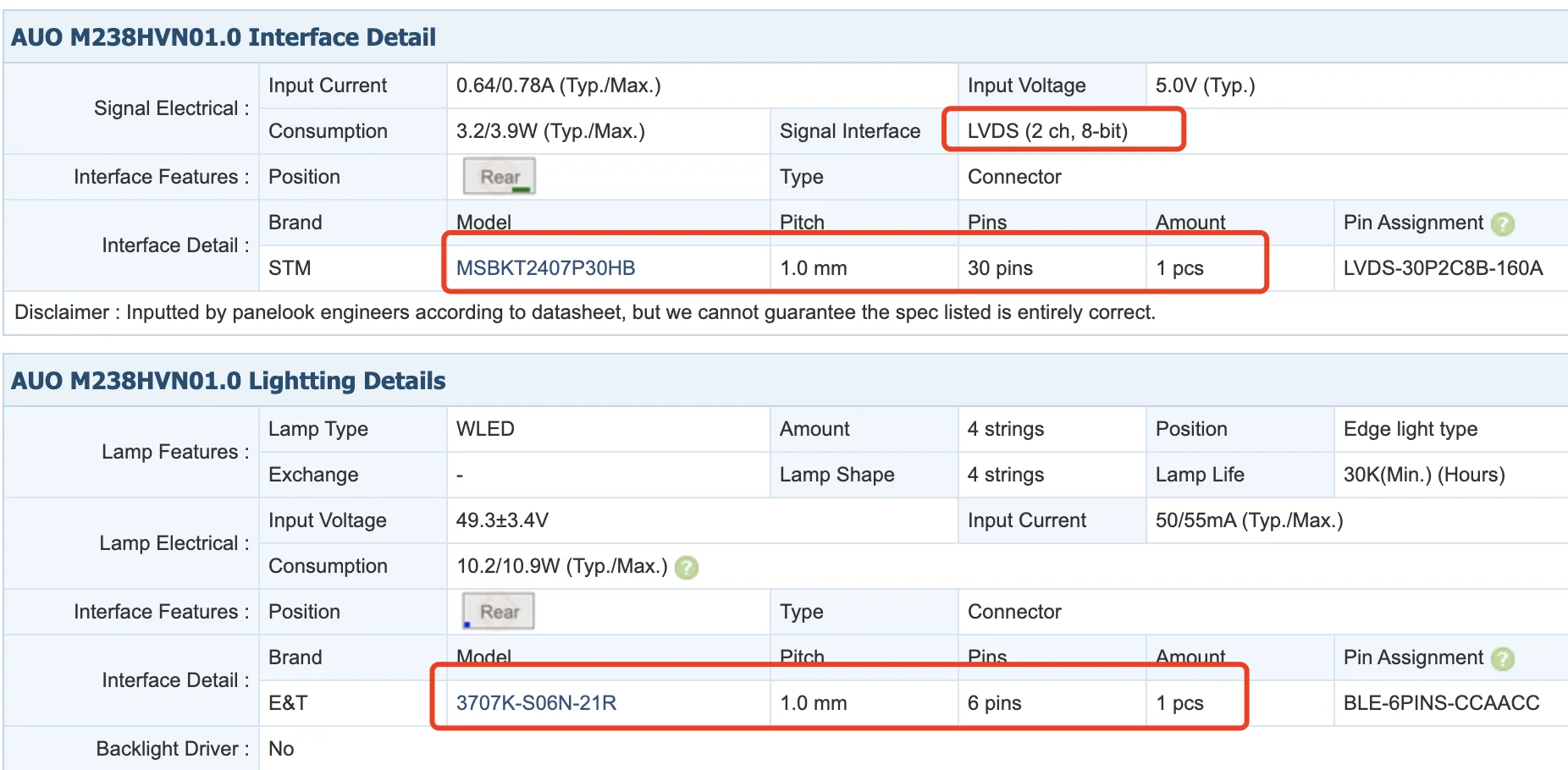

How to know the information of your screen:
1, first open your screen shell, get the label on the panel backside
2, check this link: http://www.panelook.com/index.php, enter the panel model to search.
Features:
The driver board does not support audio
Notebook, host computer, monitor, VGA HDMI signal interface
HD set-top box, computer / host, Xbox/PS3/PS4, game machine, raspberry pie and HDMI VGA signal interface
Voltage: DC 12V 3-4A

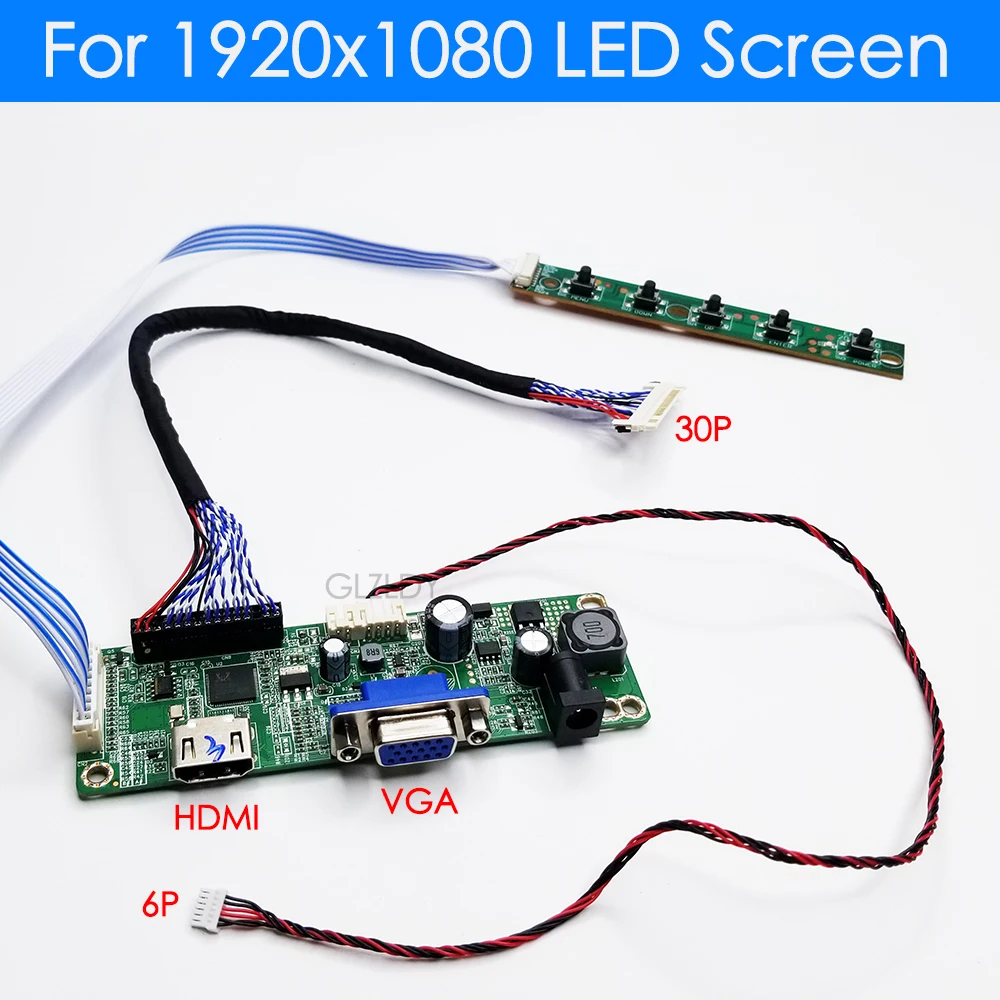

Package included:

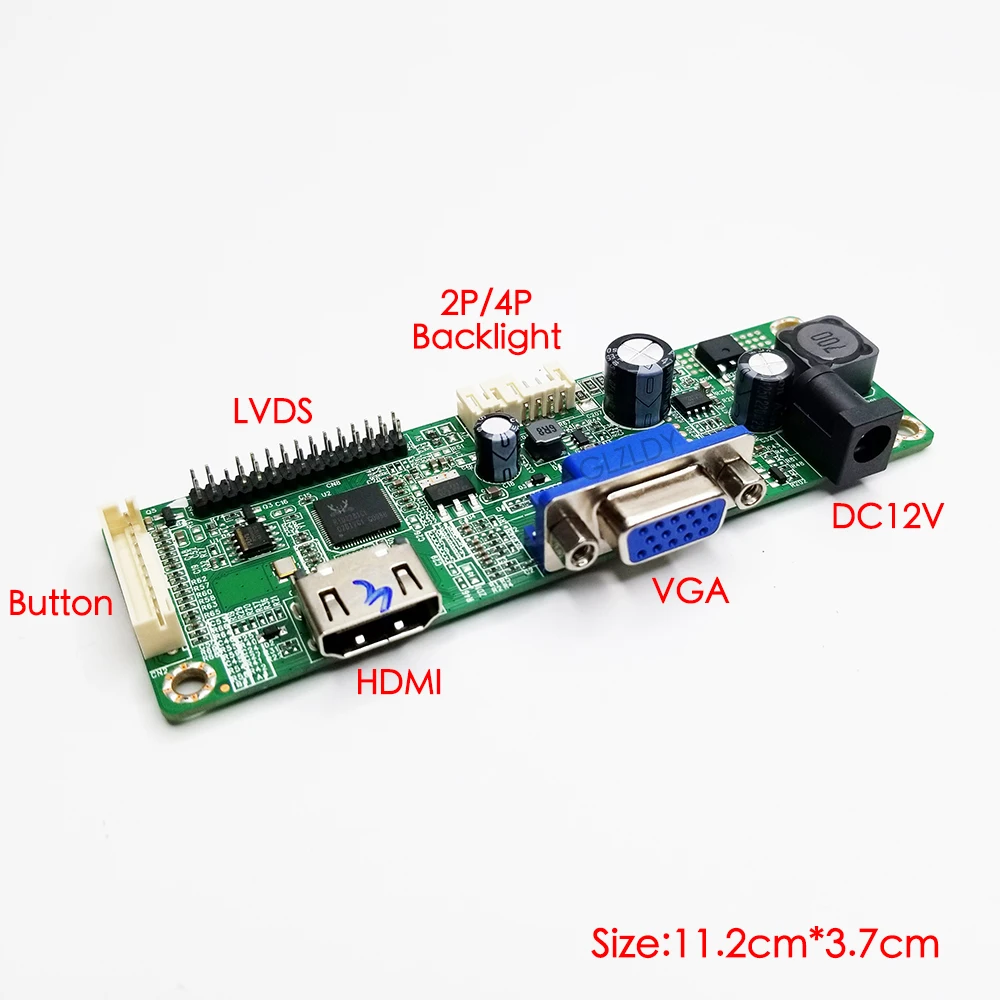

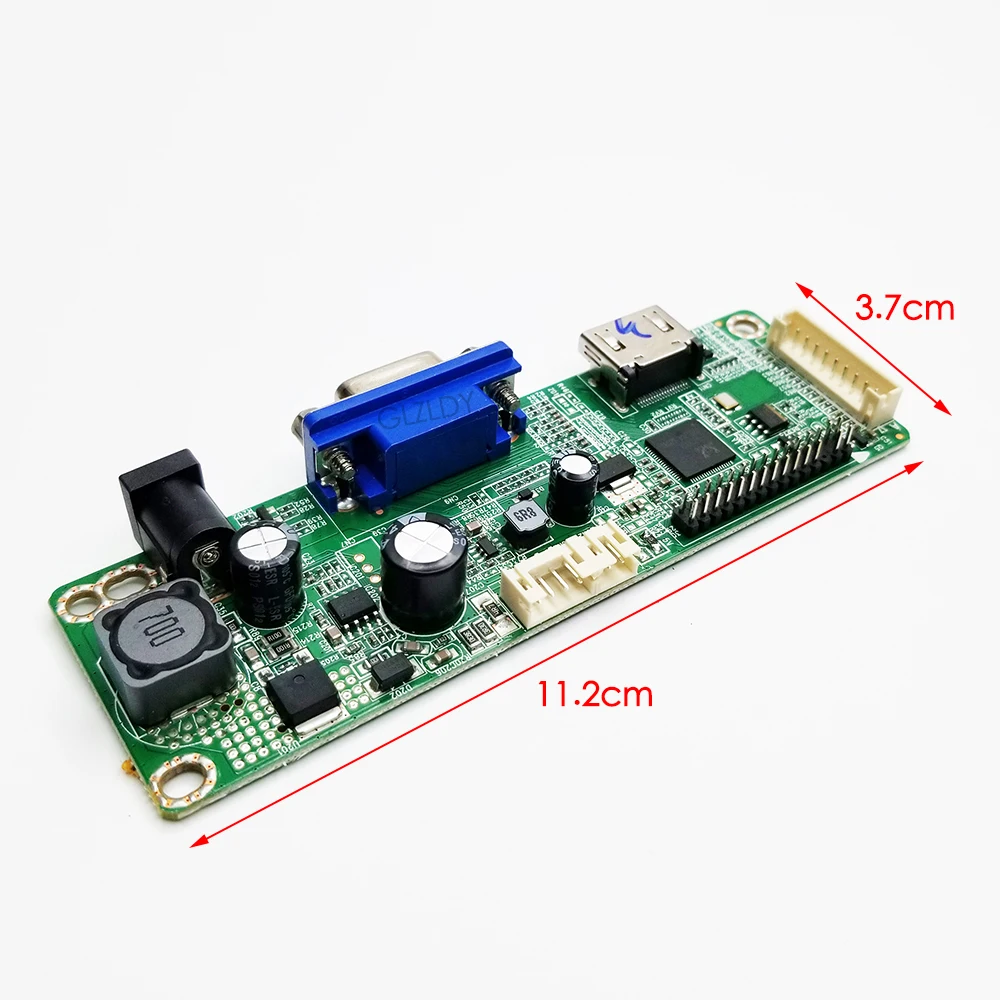

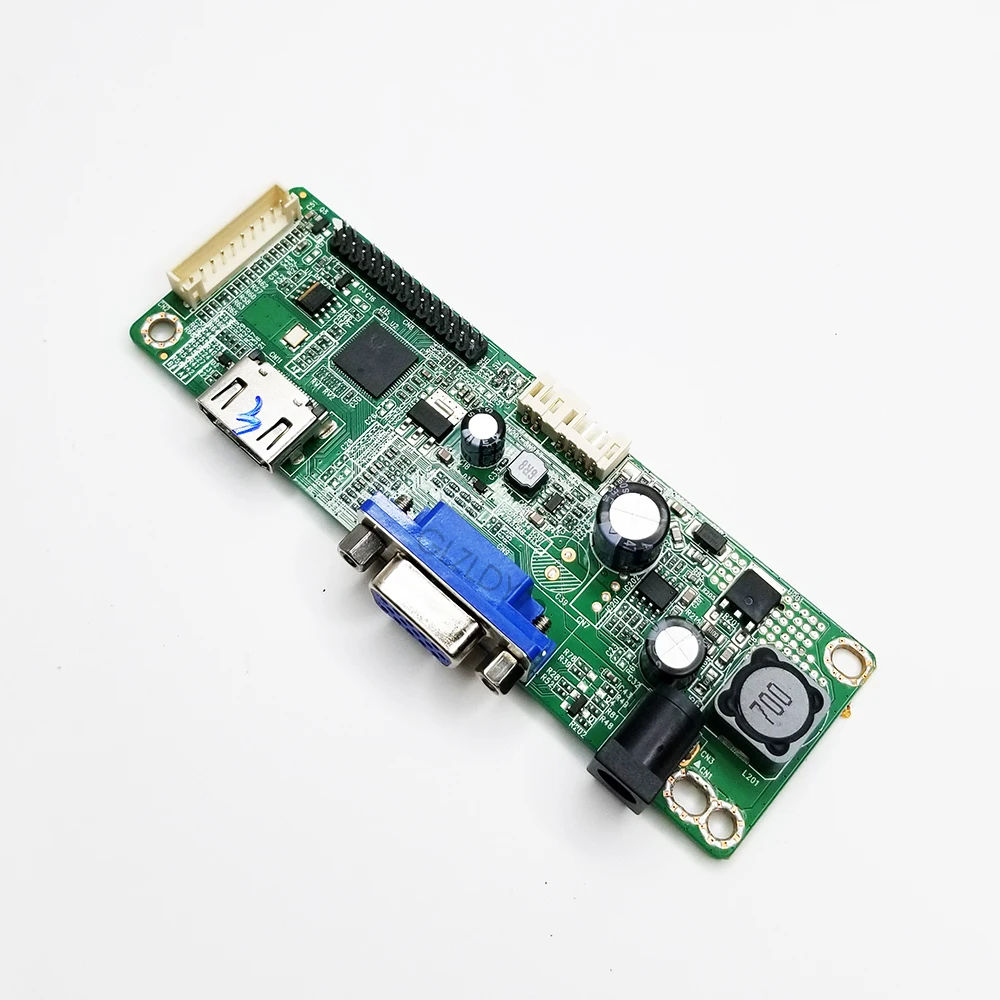

1 x Driver board( install firmware for you)
1 x Key board

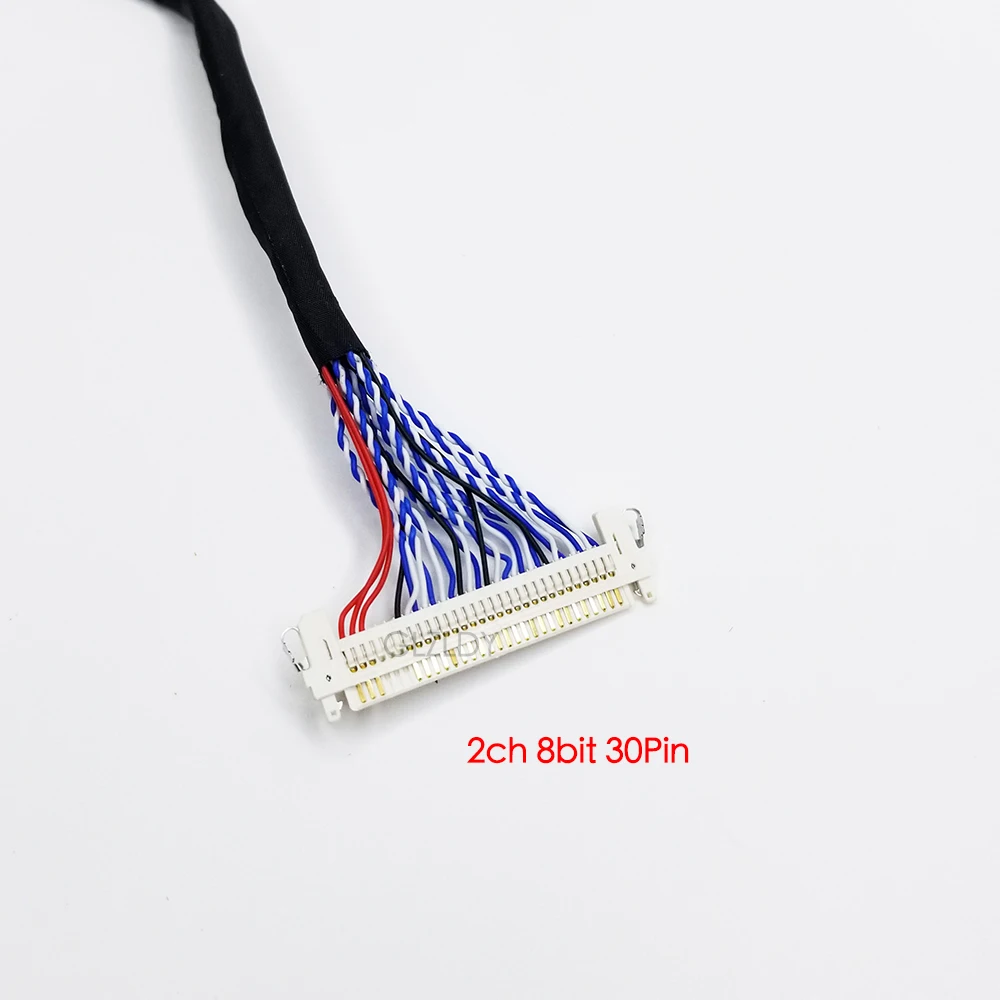

1 x LVDS cable
1 x backlight cable
Before placing an order, If you have doubts，please provide your panel model to us.
we can help you install the corresponding program.
Note: This is a DIY kit, you need to have some knowledge of electronics and ability. We don't supply any instructions. Any problems caused by personal reasons, not covered under warranty.
Supported screens include but not limited to: ONLY FOR LVDS LCD, NOT FOR EDP LCD
LM215WF3 LVDS LCD, NOT FOR EDP LCD
LM230WF3 series
LM238WF1 series
HR215WU1-120
HM215WU1-500
T215HVN01.0 T215HVN01.1 T215HVN01.2
M215HTN01.0 M215HTN01.1 M215HTN01.3
M215HW01 VB/VE
QV215FHM-N10 N11
M238HVN01.0 1.1 1.3
MV215FHM-N01 N20 N30 N40 N50 N60 N70 N71 A10 A12
QV185FHB-N82
T215HVN01 T215HVN05
CLAA215FA04
LM215WF4-SLG1
LM215WF4-TLG1
LTM230HL01
LTM230HL03
LTM230HL04
LTM230HL07
LTM230HL08
........others
Product Photo
