Scooter Motherboard Controller 36V DIY 6.5/8/10
Scooter Motherboard Controller 36V DIY 6.5/8/10
Sale
Sold out
Regular price
$46.99
Regular price
$0.00
Sale price
$46.99
Unit price
per
Description
Description
SPECIFICATIONS
Brand Name: NoEnName_Null
Hign-concerned Chemical: None
Origin: Mainland China
Specification 1: for Scooter motherboard
Specification 2: For Self Balance Smart Scooter
Specification 3: Motherboard Controller
Specification 4: Balancing Scooter Controller
Specification 5: scooter main board controller
Scooter Motherboard Controller 36V DIY 6.5/8/10 Inch For Self-Balancing Smart Hoverboards Accessories
Light reminder: Turn signal-turn left, the leaf shape indicator on the left flashes blue; Turn right, the leaf shape indicator on the right flashes blue; Go straight, the indicators on both sides are always blue.
Power indicator: battery voltage is 34V-34.5V±0.5V, and the power indicator is flashing green; when the battery voltage is higher than 34.5V±0.5V, the power indicator is steady green; The battery voltage is lower than 34V±0.5V, and the battery indicator is steady red (and raise your head while riding).When charging, it flashes yellow, and it is green when it is full (powered on).
Alarm indicator light: When the pedal inclination exceeds 15°, the status light is steady red and the motor stops.
Safety reminder: Low battery reminder (when the voltage is lower than 34V, the red light flashes with intermittent buzzer sound).
Speed limit protection: 9KM/H activates the speed limit function; 10KM/H activates the buzzer to overspeed alarm (and raise your head while riding).
Name:scooter main board controller
Working voltage: 34-42V
Maximum power: 700W
Sleep time: 10 minutes
Fit:for Self Balancing Smart Scooter
Colour:As Shown
Material:PCB

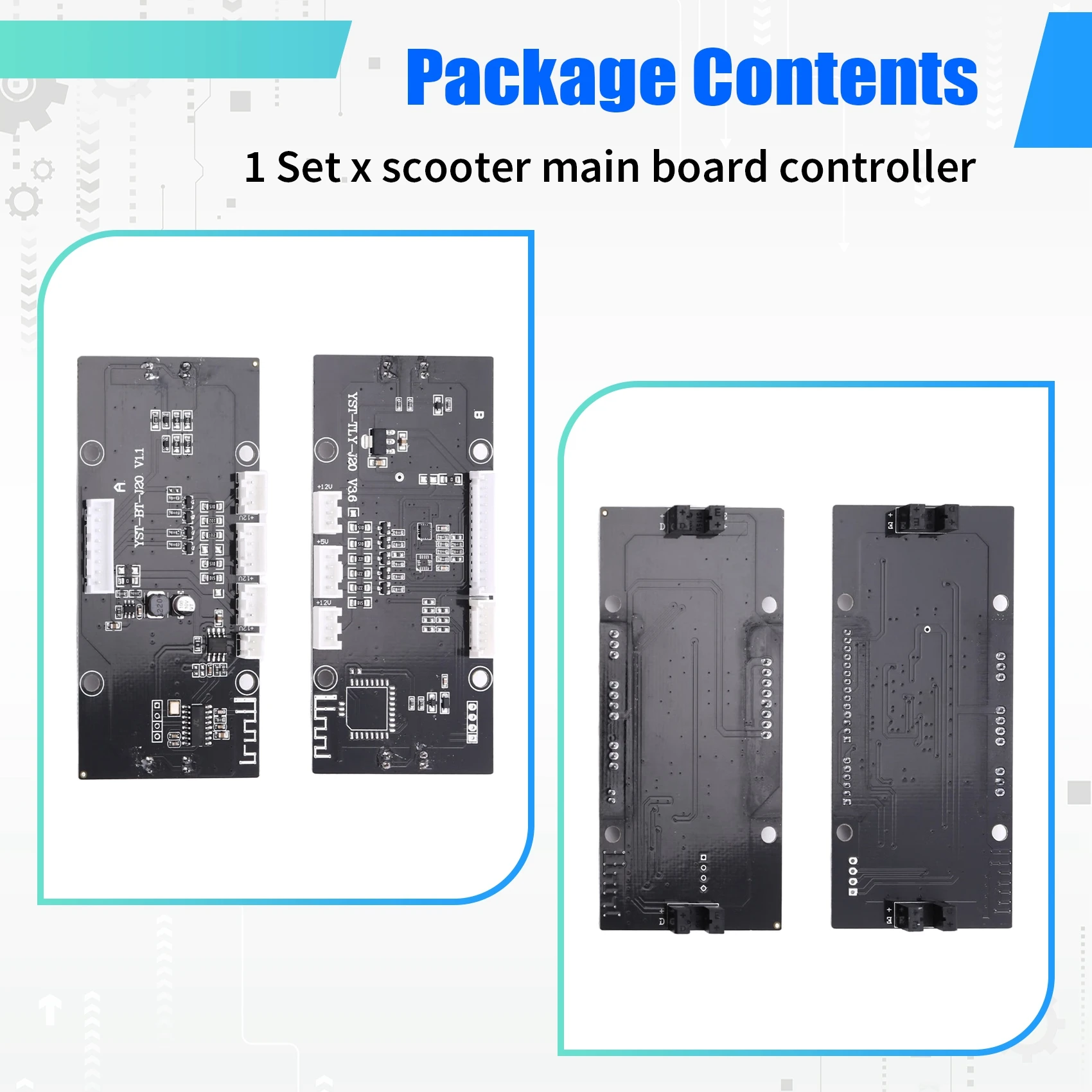

Package Contents:

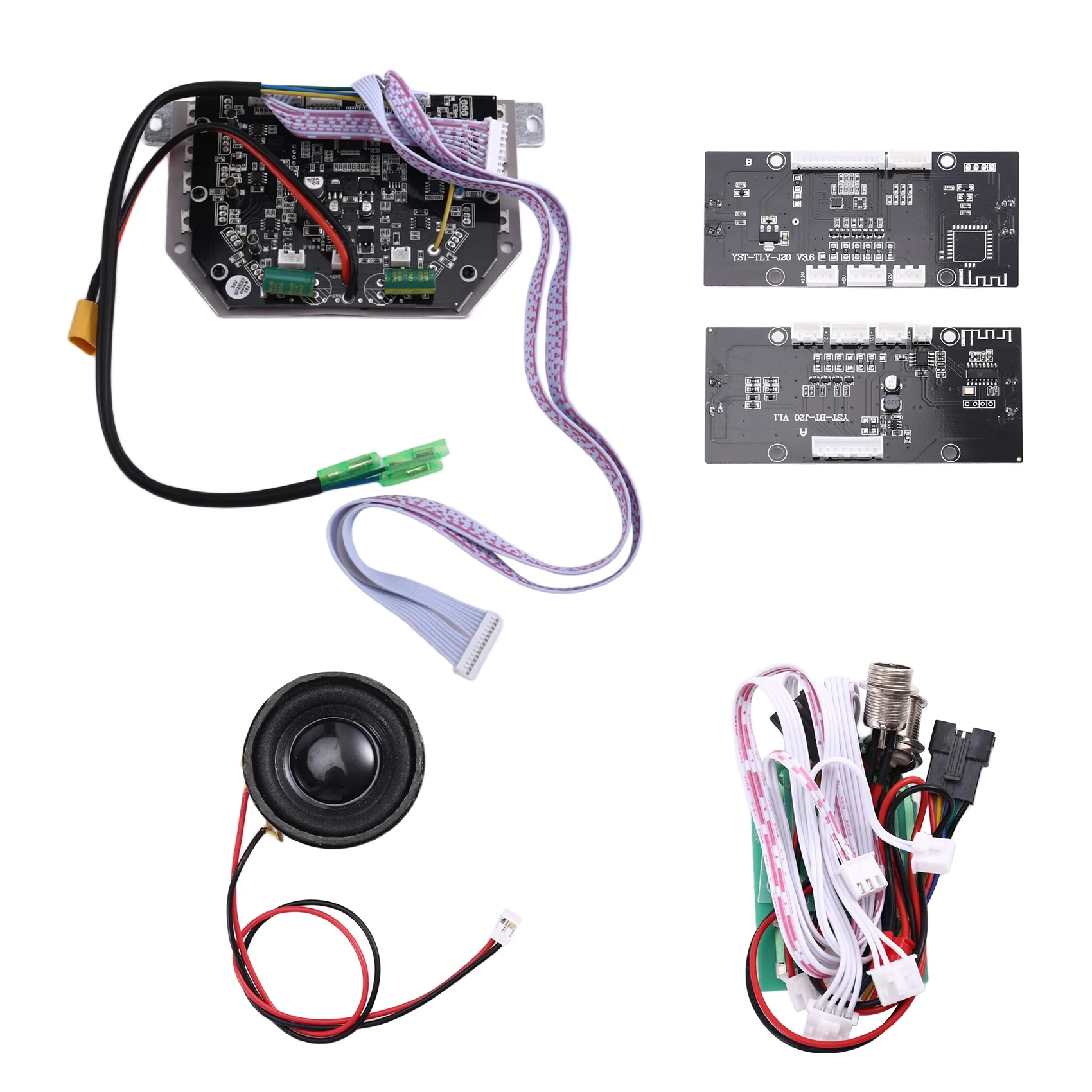

1 set * scooter main board controller
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Power indicator: battery voltage is 34V-34.5V±0.5V, and the power indicator is flashing green; when the battery voltage is higher than 34.5V±0.5V, the power indicator is steady green; The battery voltage is lower than 34V±0.5V, and the battery indicator is steady red (and raise your head while riding).When charging, it flashes yellow, and it is green when it is full (powered on).
Alarm indicator light: When the pedal inclination exceeds 15°, the status light is steady red and the motor stops.
Safety reminder: Low battery reminder (when the voltage is lower than 34V, the red light flashes with intermittent buzzer sound).
Speed limit protection: 9KM/H activates the speed limit function; 10KM/H activates the buzzer to overspeed alarm (and raise your head while riding).
Name:scooter main board controller
Working voltage: 34-42V
Maximum power: 700W
Sleep time: 10 minutes
Fit:for Self Balancing Smart Scooter
Colour:As Shown
Material:PCB
Package Contents:
1 set * scooter main board controller
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
|
