36V/48V/52V/60V 500W 25A BLDC Electric Controller
36V/48V/52V/60V 500W 25A BLDC Electric Controller
Description
Description
SPECIFICATIONS
Brand Name: TOOPRE
Hign-concerned Chemical: None
Origin: Mainland China
Warn: It is illegal to ride electric scooters on public roads, pavements, or cycle paths. They are intended only for use on private land with the owner's permission.
Feature:
*high quality metal material with grooves design, able to protect the internal circuitry from thermal overload.
1) Ultra-low noise when starting
2) under-voltage protection
3) over-current protection
4) E-ABS,Low level brake
5) with PAS connector (only 5 or 6 magnets PAS works well)
6) with self-learning cable (self-learning function only works when PAS is set to 2 or more)

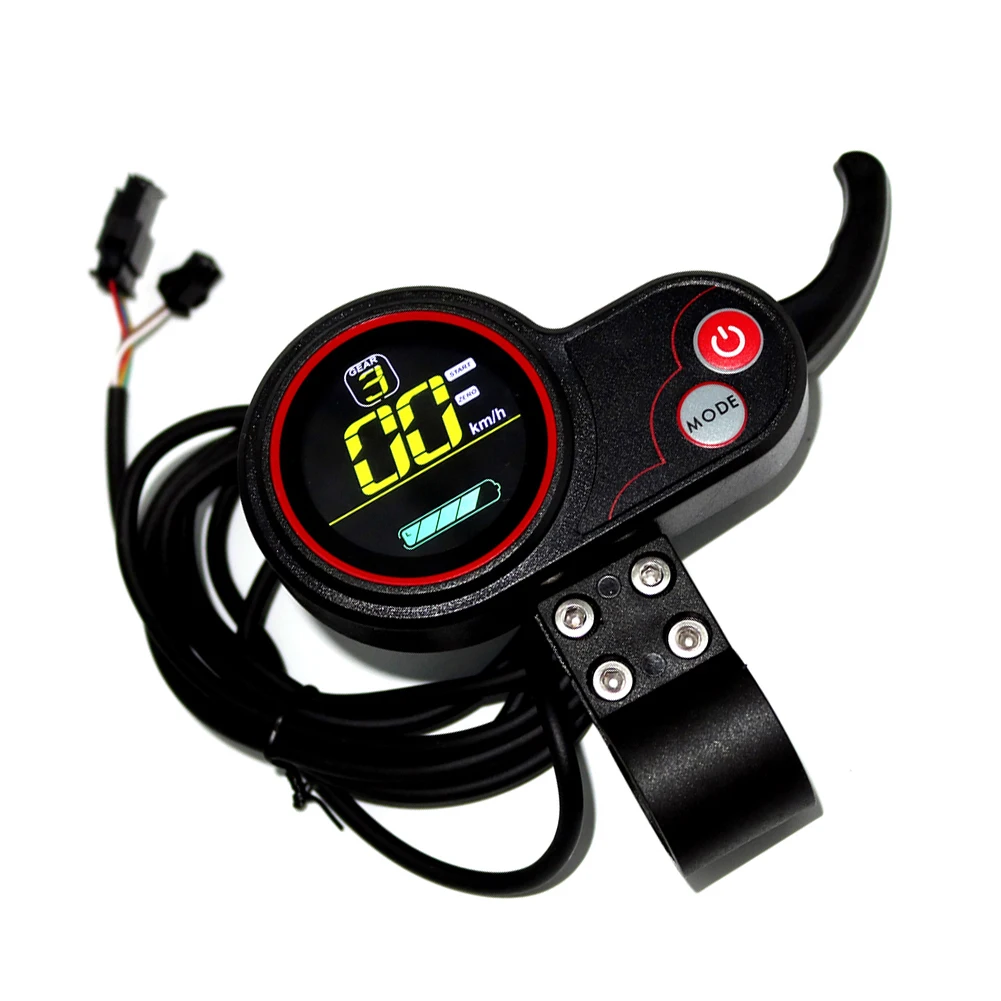

7) With for GT-100 display connector
8) The throttle of the display and the throttle of the controller cannot work at the same time.
This controller and LCD must be connected to the motor Hall sensor and throttle!
Speed limits can be used for pedal assist and throttle.
All of our standard LCD and controller Settings 1-5 speeds are for pedal assist and throttle only, and all standard Settings work that way.
if
*36V 48V52V 25A , up to 500W power,Fully satisfy your need for speed, you can enjoy cross-country or hill climbing

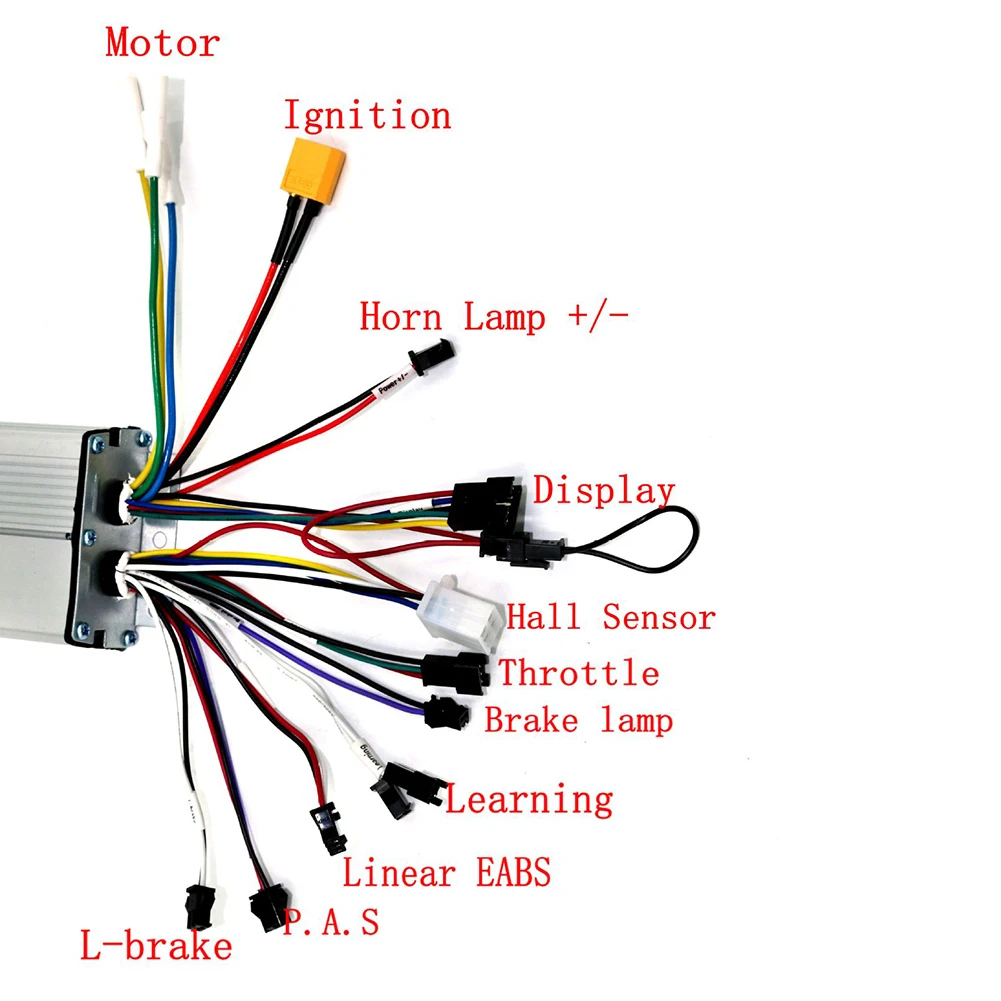

*easy to install and use,equipped with wiring identification diagrams to provide steady speed and sensitive braking and directional change control.
Specification:
product name: Electric Scooter Controller
Material: Aluminum Alloy + PCB + Plastic
Color: black As Picture Shown
Application:ebike ,electric bike , scooter

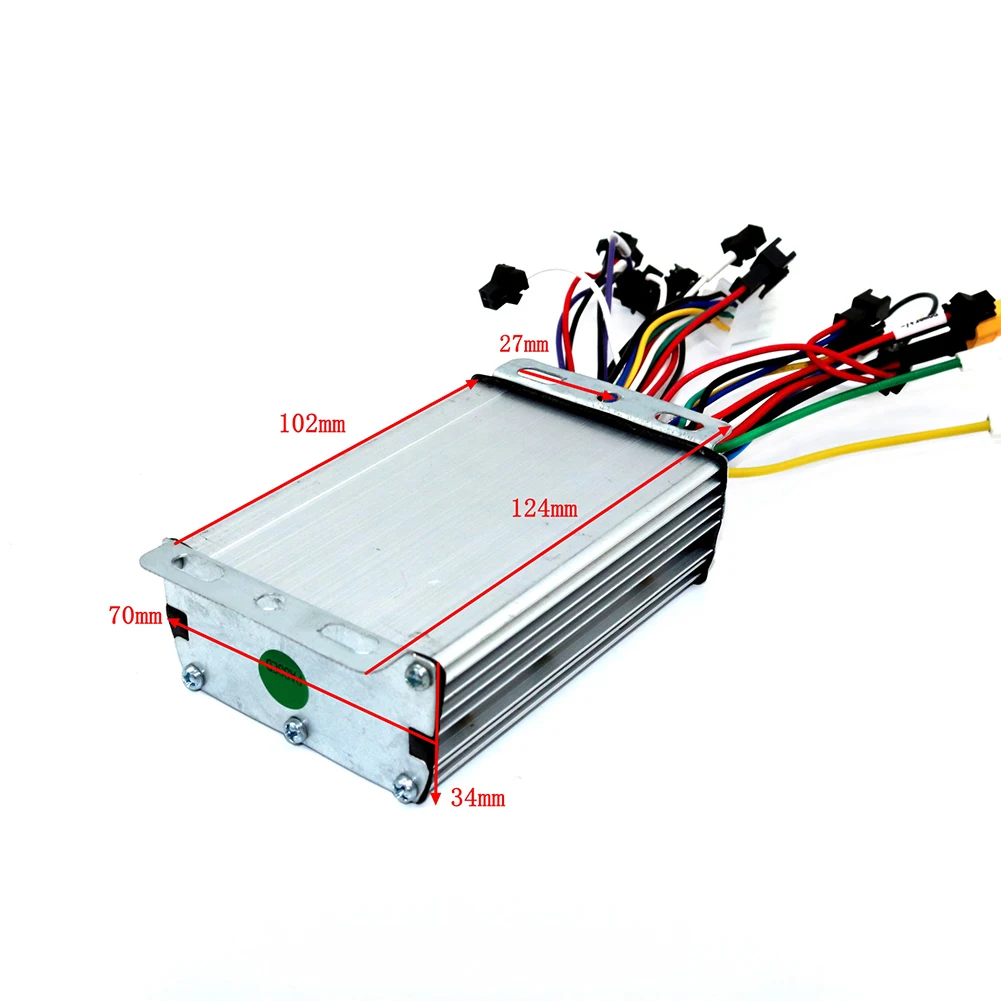

Size: Approx.99x70x33mm/3.9x2.8x1.3in
Gross Weight: Approx.240g/8.5oz
Voltage: 36 48V 52 60V
Current:up to 25A
power：up to 500W
cable ： 5pin SM

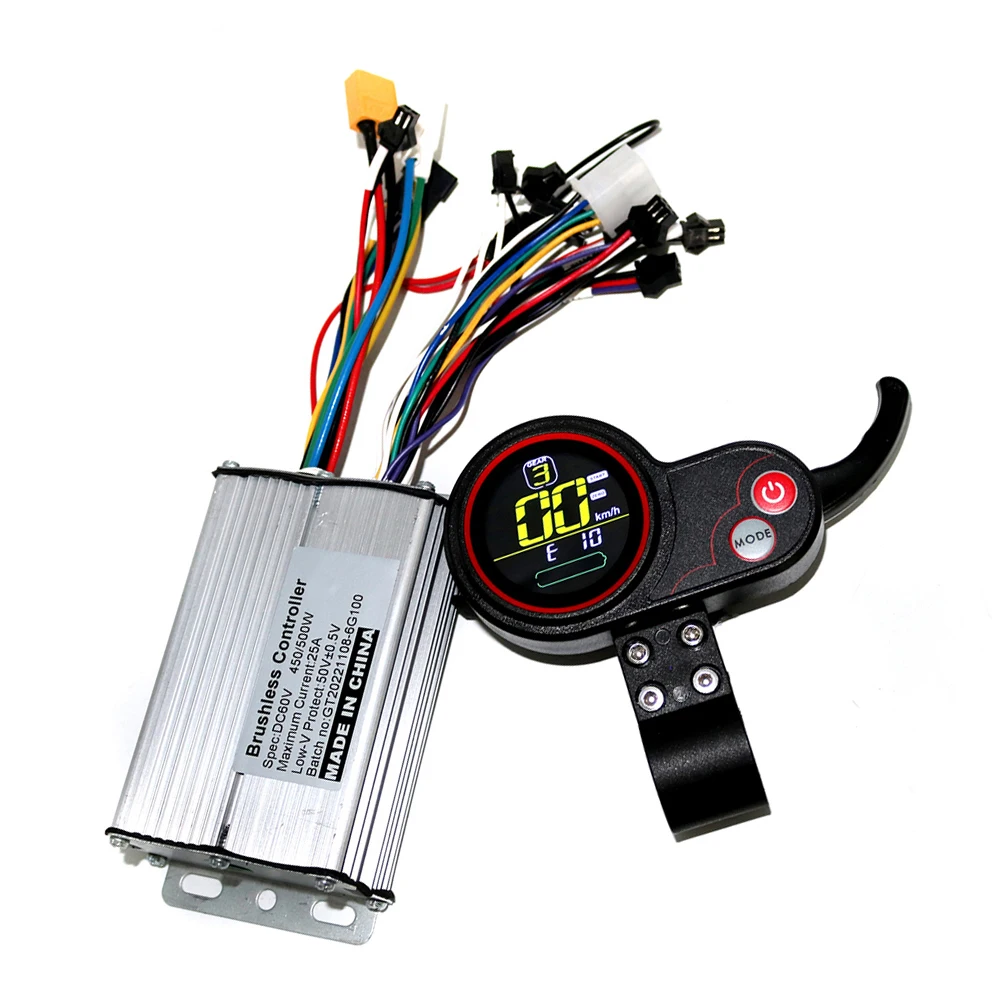

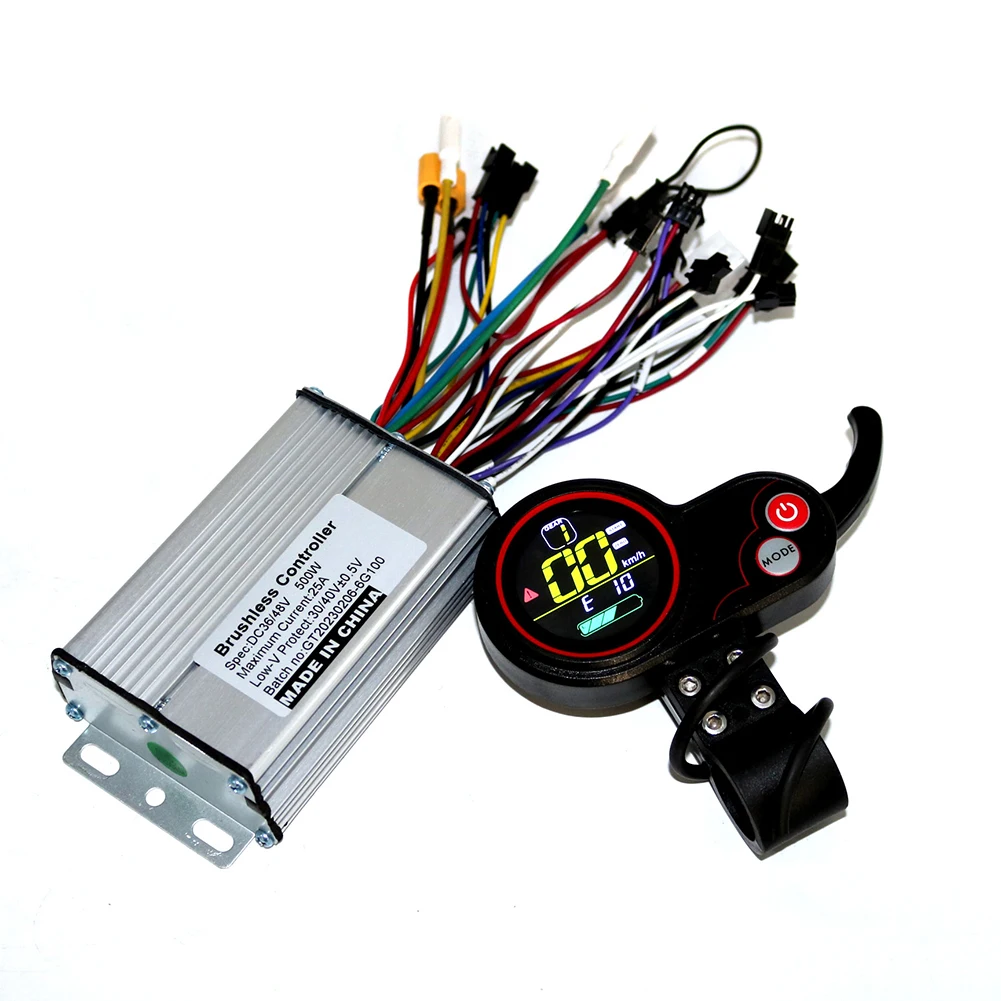

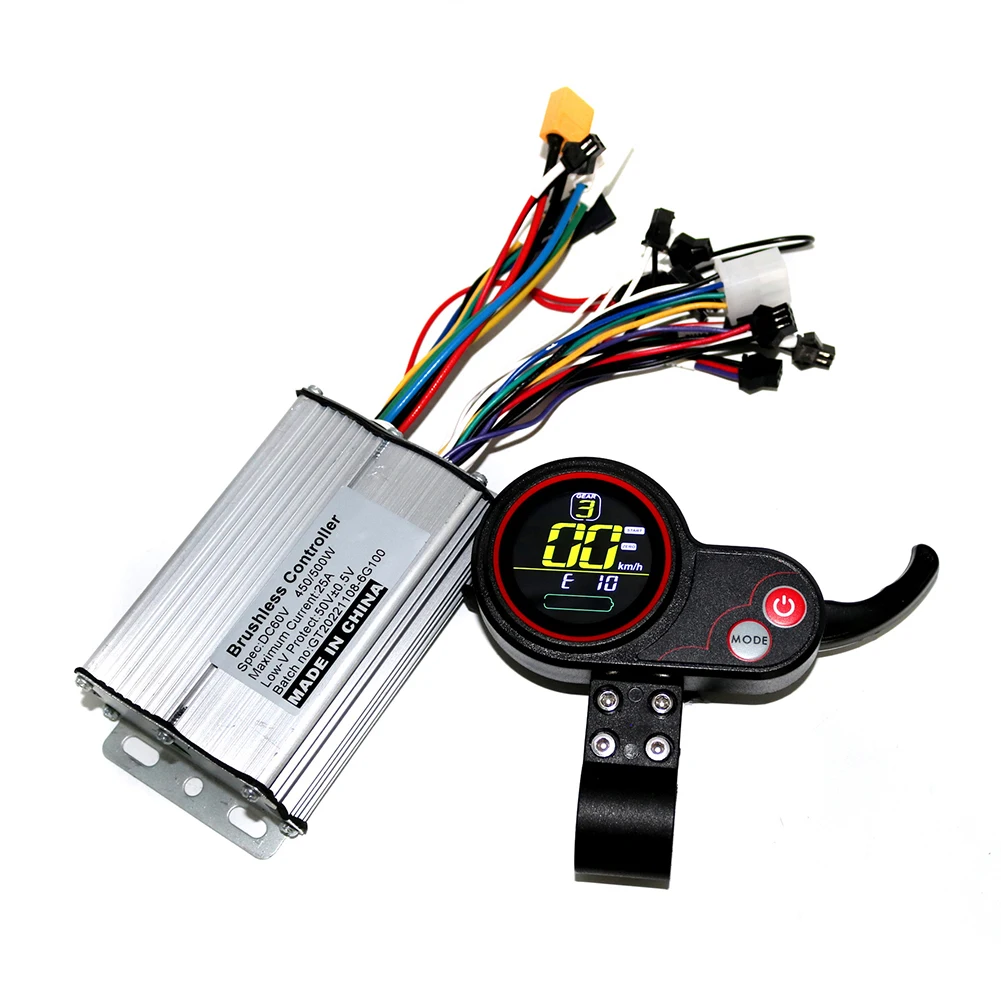

Package content:
1xController+1xGT-100 LCD Dashboard Display Screen (5PIn
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
