Video Intercom Doorbell
Video Intercom Doorbell
Description
Description
![]() |
|
| Why Choose Bcomtech Video Door Phone Intercom ? |
|
| 7 inch LCD clear screen, resolution is 480*240 |
|
| Parameter |
|
| Indoor Monitor |
Model |
82714-EM |
82714-EMB |
|
| Monitor |
7" TFT LCD video doorphone |
|||
| Resolution |
800(H)*3(RGB)*480(V) |
|||
| Memory |
Support Max. 32GB SD card |
|||
| Intercom Mode |
Hands-free dual-way communication |
|||
| Conversation duration |
120s |
|||
| Keypad |
Touch button |
|||
| Power Consumption |
400mA Max. |
|||
| Power Supply |
External power DC12V |
Built-in power AC100-240V |
||
| Support |
2 call panerl + 4 indoor monitor + 2 CCD camera & 2 alarm |
|||
| Material |
Acrylic wire drawing shell |
|||
| Operation Temp |
-10℃ +60℃ |
|||
| Installation |
Surface mount |
|||
| EM as suffix-sensor's key + memory |
||||
| EMB as suffix-sensor's key + memory + built-in power |
||||
| Outdoor Unit |
Model |
82214-C42 |
82214-C60 |
82214-C80 |
| Camera Sensor |
1/4" CMOS, 420TVL |
1/4" CMOS, 600TVL |
1/3" CMOS, 800TVL |
|
| 3.7mm lens |
3.7mm lens |
3.7mm lens |
||
| View Angle |
pinhole lens:3.7mm 68º/ wide angle lens:2.8mm 110o |
|||
| LEDs For Night LED |
IR LEDs(120º) |
|||
| Power Consumption |
200mA Max. |
|||
| Power Supply |
Supplied from indoor monitor |
|||
| Material |
Aluminum alloy panel |
|||
| Waterproof |
IP65 |
|||
| Operation Temp |
-40℃ +50℃ |
|||
| Istallation |
Surface mount |
|||
![]() |
|
|
|
|
|
|
|
![]() |
|

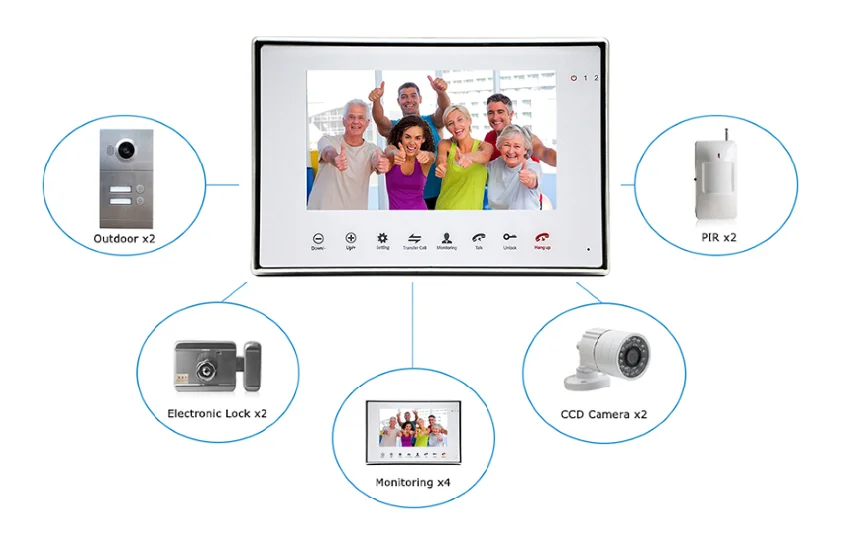

| Support Electronic Lock, CCD Camera, Alarm |
|
| Our 7" video doorbell set supports connecting with PIR detector, CCD camera and alarm system. It can protect your home and property in all aspects. |
|
![]() |
|
![]() |
|
![]() |
|
| Indoor Monitor 7" TFT display, acrylic wire drawing shell Each call panel can set different ringtones & morning/afernoon/night with different volume size(10 level) Support 2 call panels +4 indoor monitor + 2 CCD camera & alarm Key-unlock, monitoring,internal-communication among indoor monitors, call transfer, recording & picture External motion detection (triggle alarm recording or picture optional) Monitor built-in battery for time memory (re-start machine, need reset time) Support setting un-lock time, suitable for different electronic lock Built-in or external power optional |
![]() |
![]() |
Outdoor Call Panel Anti-vandal pin-hole camera 3.7mm lens Rain cover, corner bracket including Easy To Install And DIY Installation Rust-proof Aluminium Alloy Anti Vandal Panel Weatherproof IP65 aluminium ally panel Adjustable Intercom Volume CMOS 420TVL, 600TVL,800TVL optional IR LED Offset Lighting Can Obtain Better Evening Viewing |
| Model |
82714-EM |
Model |
82214-1-C80 |
|
| Monitor |
7" TFT LCD video doorphone |
Camera Sensor |
1/3" CMOS, 800TVL |
|
| Resolution |
800(H)*3(RGB)*480(V) |
3.7mm lens |
||
| Memory |
Support max. 32GB SD card |
View Angle |
pinhole lens:3.7mm 68º |
|
| Intercom Mode |
Hands-free dual-way communication |
Model |
Model |
|
| Conversation duration |
120s |
LEDs For Night LED |
IR LEDs(120º) |
|
| Keypad |
Touch button |
Power Consumption |
200mA Max. |
|
| Power consumption |
400mA max. |
Power Supply |
Supplied from indoor monitor |
|
| Power Supply |
External power DC12V |
Material |
Aluminum alloy panel |
|
| Operation Temp |
-10℃ +60℃ |
Operation Temp |
-40℃ +50℃ |
|
| Istallation |
Surface mount |
Istallation |
Surface mount |
| Package |
|
![]() |
|

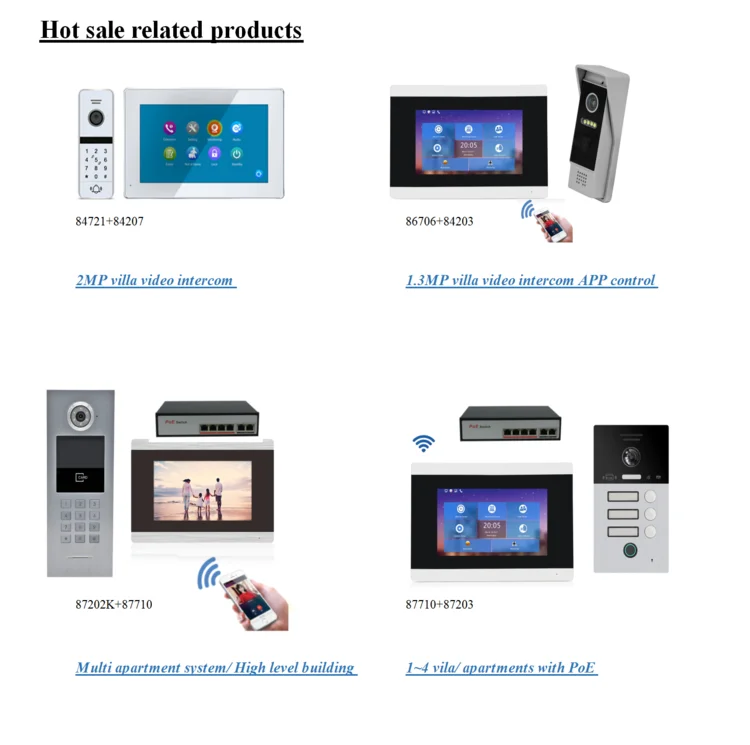

| Villa Intercom System |
|
| |
Thanks for endorsing our products, here are some related products about unit of video door phone for your choice.

*Strict quality control, QC department, 6 testing rooms.
*Great in R & D ability. 15 engineers working on new functions and bugs.
*40名工人,稳定的工人,稳定的产品.
*CE/ FCC/ RoHS 证书,我们可以随时满足您的要求.
*欢迎 OEM/ODM.

我们工厂的视图

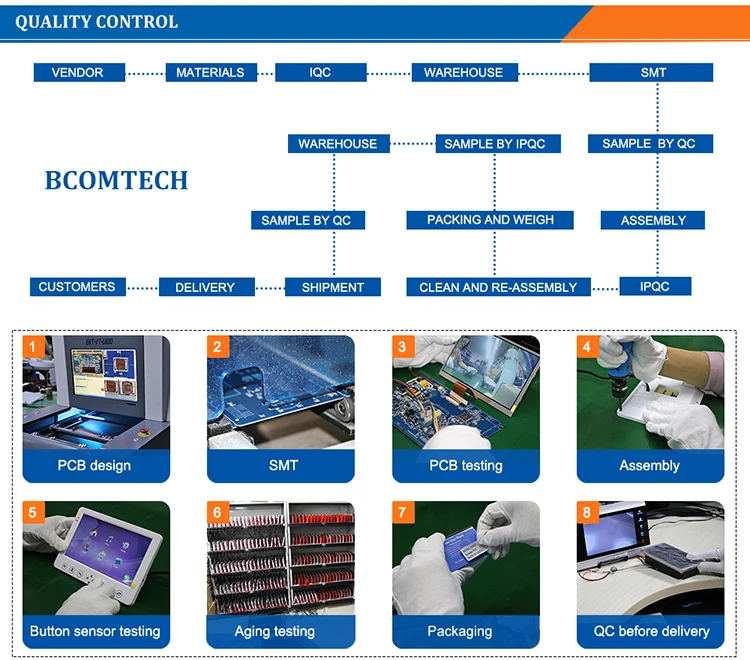

质量控制体系.

请 点击这里 访问我们的网页与我们在线聊天!
